Accessories for Surface Finish

Diavite AH-00/00/90/2 Axis and Knives Tracer to measure small axis, knives, edges and wires (1)

Diavite BH-00/00/60/2 Small Bore Tracer with 2µm Radius Diamond Stylus Maximum Depth 20mm Minimum Bore Diameter 2.5mm (1)

Diavite Measuring support aluminium, h=250 mm, 300x195 mm, MSHN-AL (1)

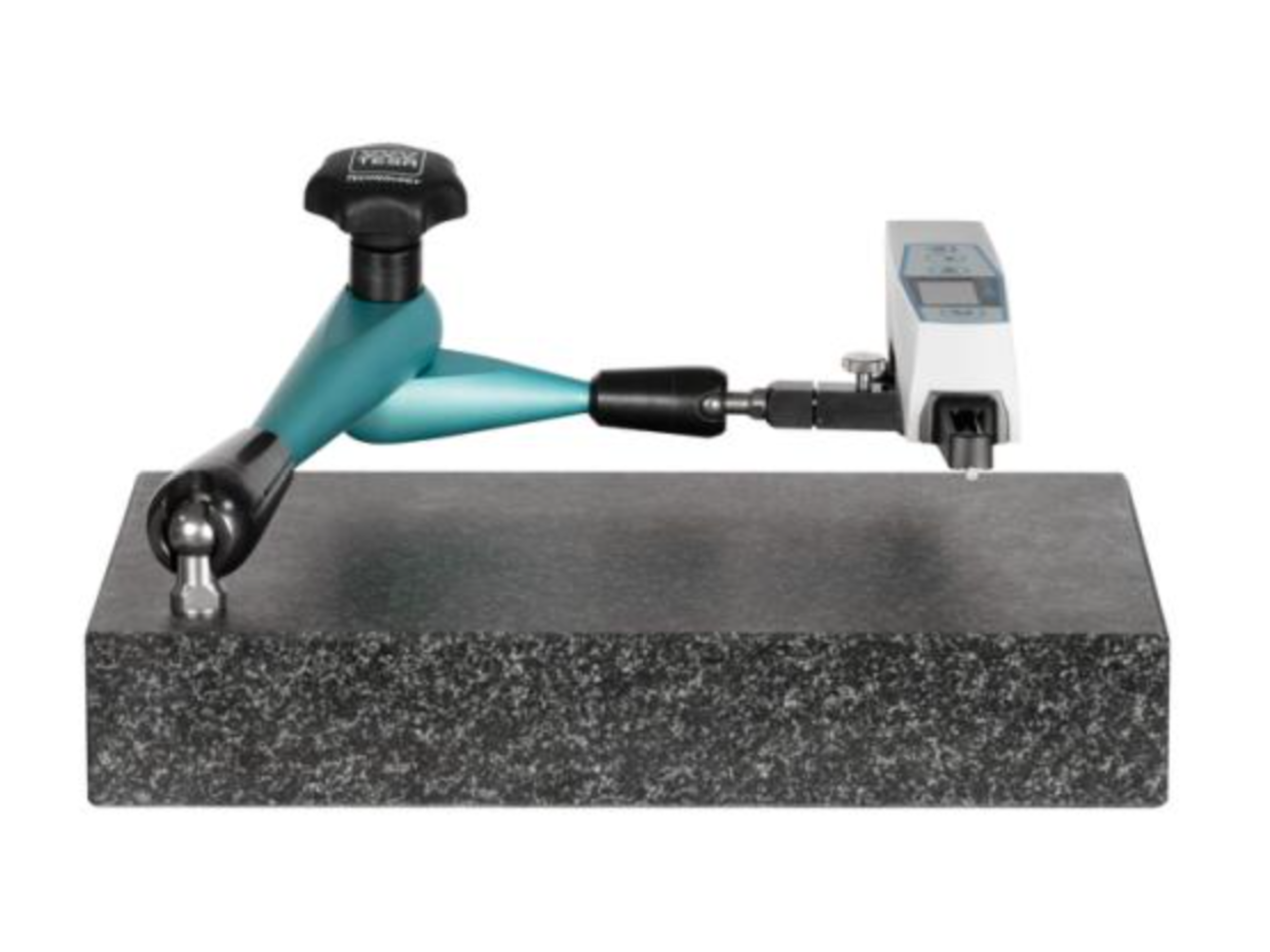

Diavite MSHN-HG Test Stand Granite h=250 mm, 300x195 mm (1)

Diavite MSHN-HG-500 Test Stand Granite h=500 mm, 300x195 mm (1)

Diavite NFH Slot Tracer NFH-25/10/90/5 Maximum Slot Depth 25mm Minimum Slot Width 1.5mm (1)

Diavite NH-15/00/90/5 Tracer for measuring slots up to 15mm deep (1)

Diavite SH-00/00/60/2 Tracer 2µm Radius Diamond Stylus Maximum Depth 27mm Minimum Bore Diameter 8mm with Skid (1)

Diavite Standard SH-00/00/90/5 Tracer 5µm Radius Stylus (supplied with DH8 VH/VHF) Maximum Depth 27mm Minimum Bore Diameter 8mm with Skid (1)

Diavite Tracer KKH with skid for concave/vex measurement, radius of the tip: 2 µm/60° for VH/VHF, Article code: KKH-08/10/60/2 (1)

Diavite Tracer KKH with skid, concave/vex surface, 4 mm, 5 µm/90° for VH/VHF, Article code: KKH-04/10/90/5 (1)

Diavite Tracer NH with skid for slot 15 mm, 2 µm/60° for VH/VHF, NH-15/00/60/2 (1)

Diavite Tracer TH with skid for depth measurement 130 mm, 5 µm/90° for VH/VHF, Article code: TH-130/10/90/5 (1)

Diavite Tracer UH with skid for circumference- and ball , 5 µm/90° for VH/VHF, Article code: UH-00/00/90/5 (1)

Diavite Tracer with skid for gear tooth flanks ZH, 5 µm/90°, Article code: ZH-00/00/90/5 (1)

Diavite Tracer with skid for transversal measurement QBH, 5 µm/90° for VH/VHF, Article code: QBH-00/00/90/5 (1)

Diavite Tracer with skid for transversal measurement QH, 5 µm/90° for VH/VHF, Article code: QH-00/00/90/5 (1)

Mitutoyo 2 x Deep hole stylus - R2µm; 60° for Surftest; Formtracer SV-C 12AAC740 (1)

tracer for concave and convex parts with a minimum radius of 5 mm irregular curvatures can also be measured the minimum lt and lc must be applied radius of the tip: standard 5 μm radius of skid: r = 1 mm do not use with the advance device down the use of a stand for the advance device is strongly ad... (1)

Tracer without skid NFH, bore measurement, X= 6 mm, 5 µm/90° for VHF only, NFH-06/10/90/5 (1)
