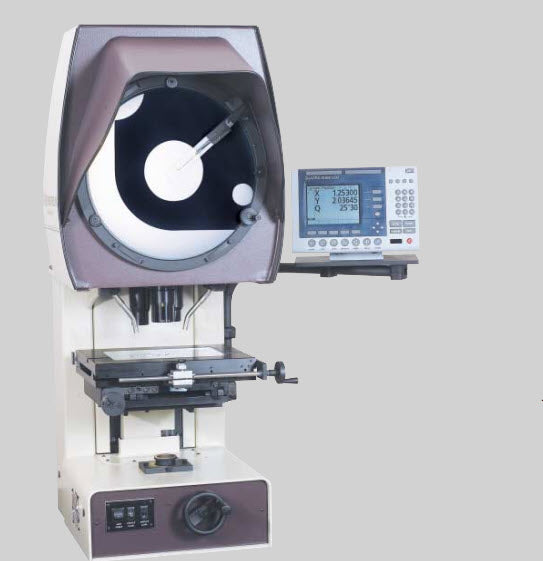

Due to the PH-3515F’s horizontal-beam illumination, you can easily measure larger and heavier workpieces including toothed racks and punching tools.
You can use the projector for a wide range of applications due to its generous 254 x 152 mm stage travel and 45 kg allowable stage loading.

Measuring range XY:	254 x152 mm
Projected image:	Erect

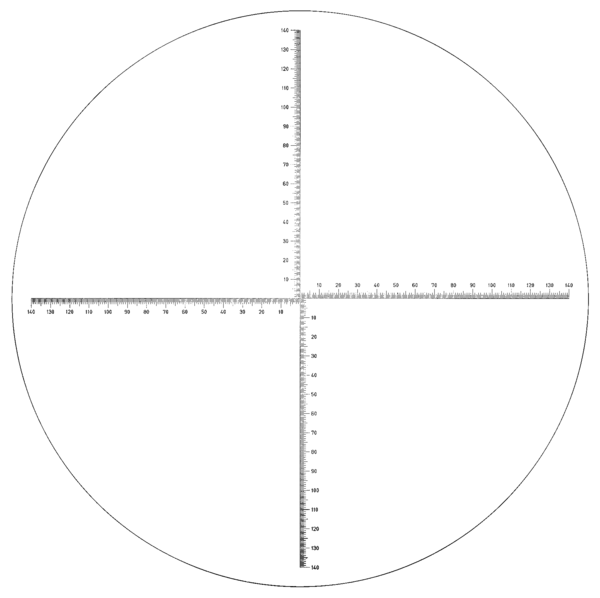

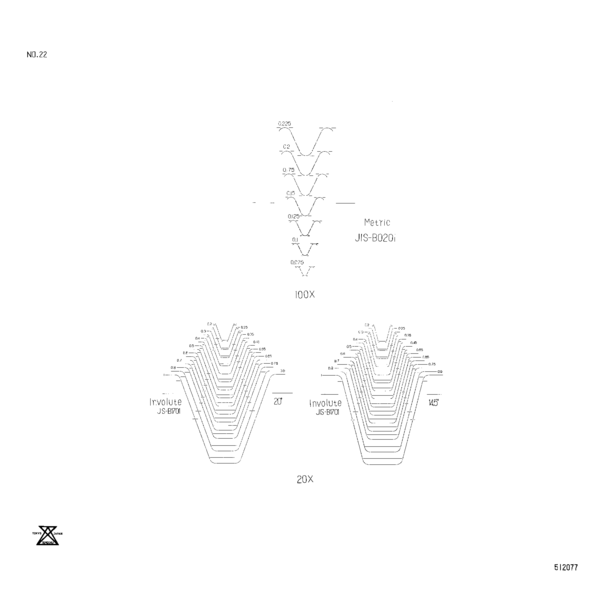

Projector screen:	Effective diameter: 353 mm Screen material: Fine-ground glass Screen rotation: ±360°, fine feed and clamp Angle display: Digital counter (LED) Resolution: 1' or 0.01° (switchable) Range: ±370°ABS/INC mode switching, Zero Set Reference lines : Cross-hairs

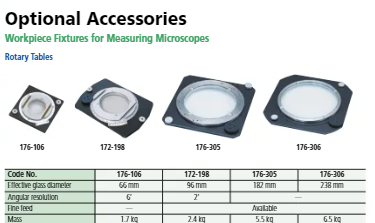

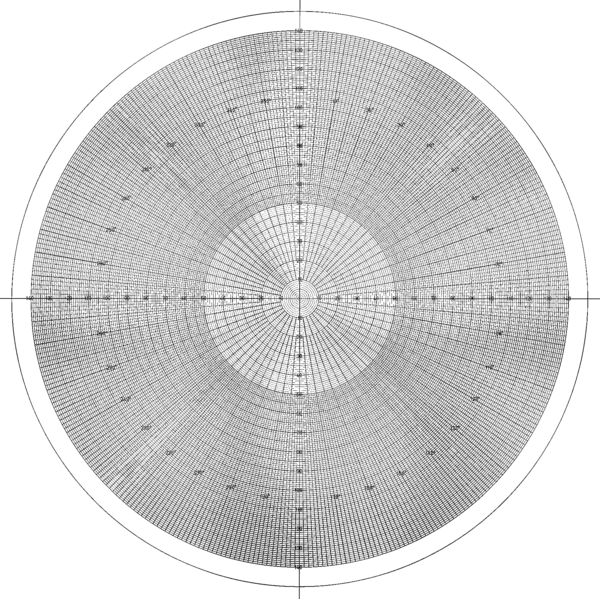

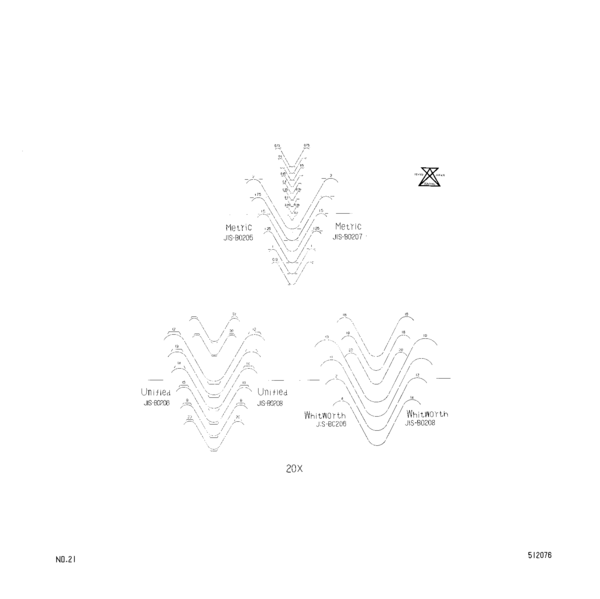

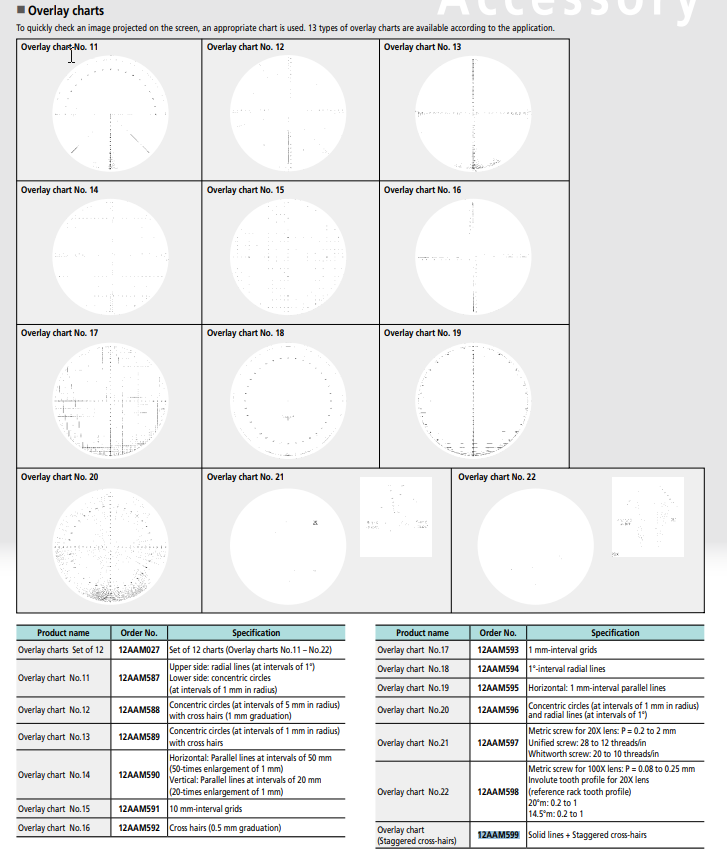

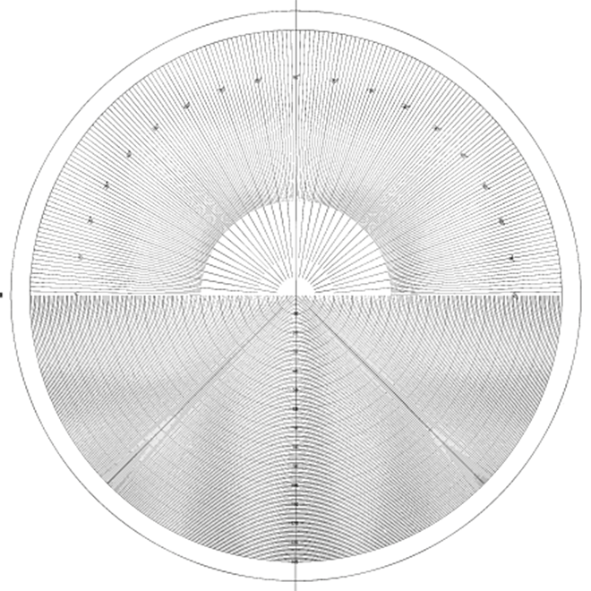

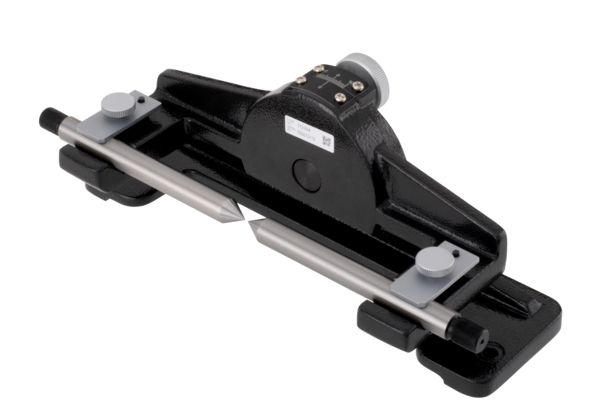

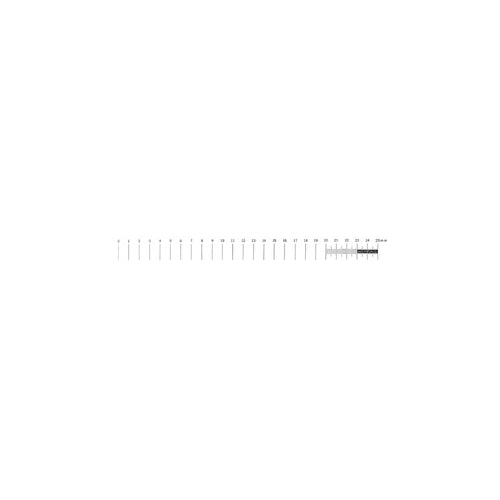

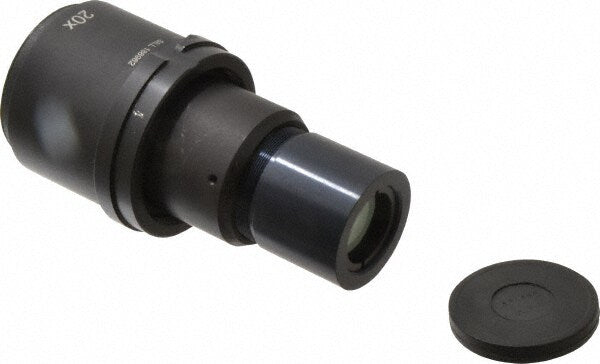

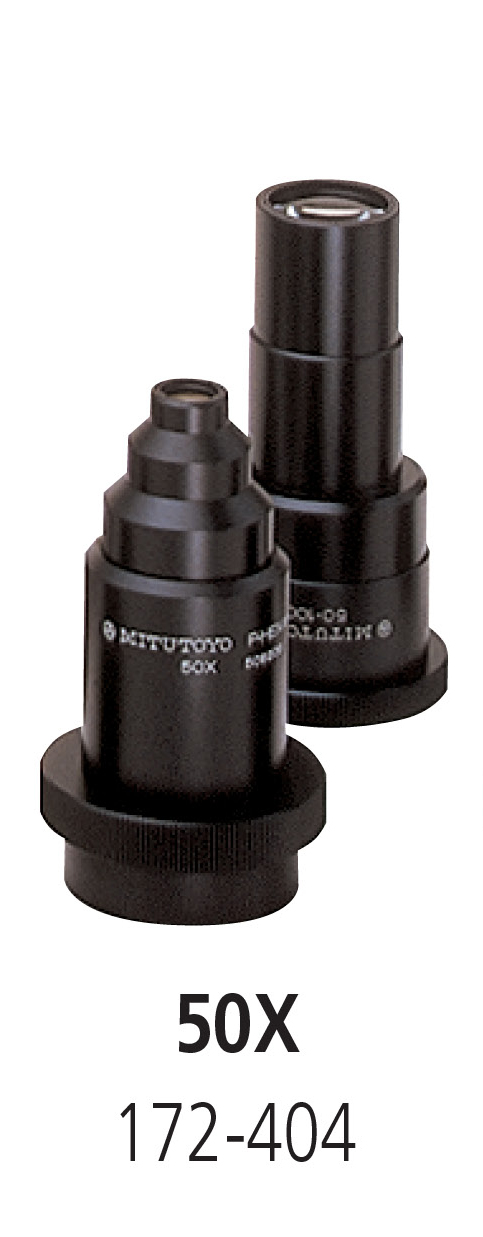

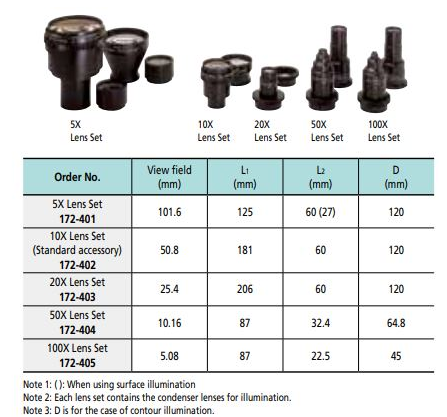

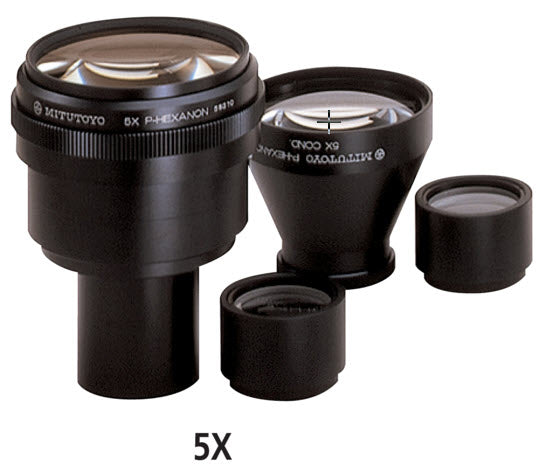

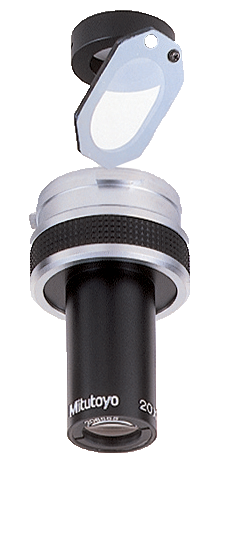

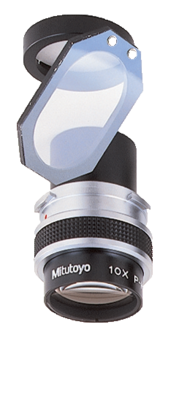

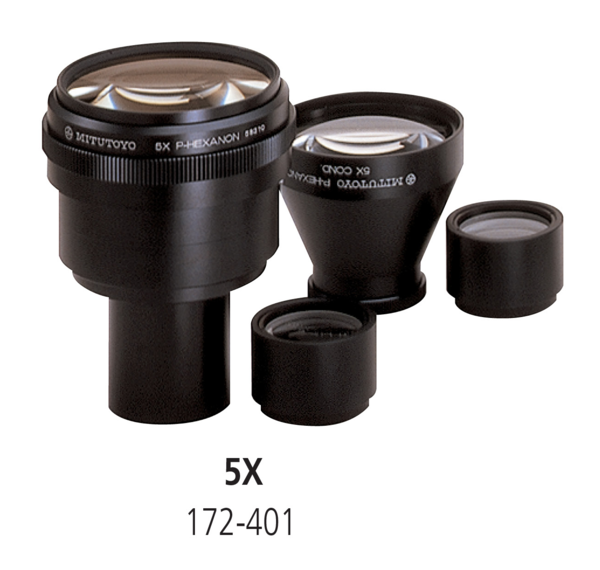

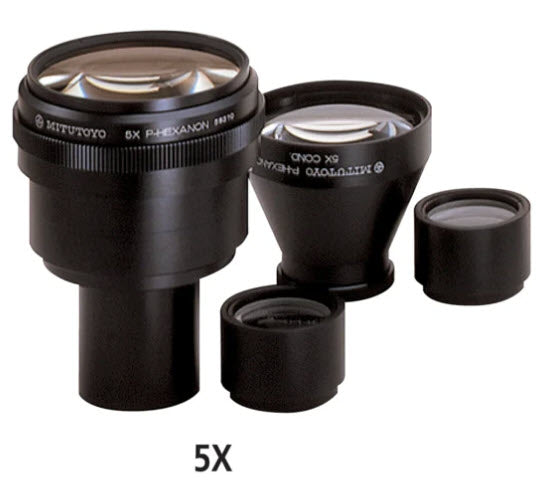

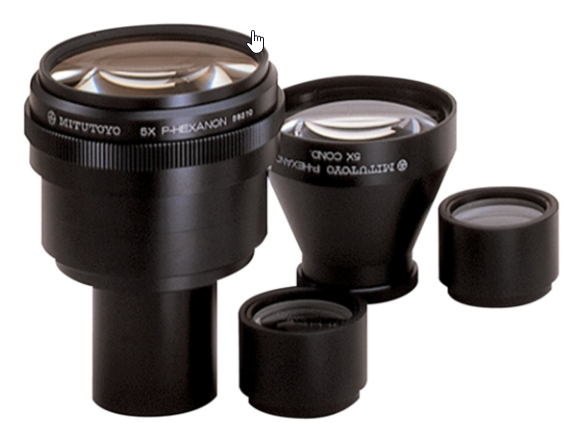

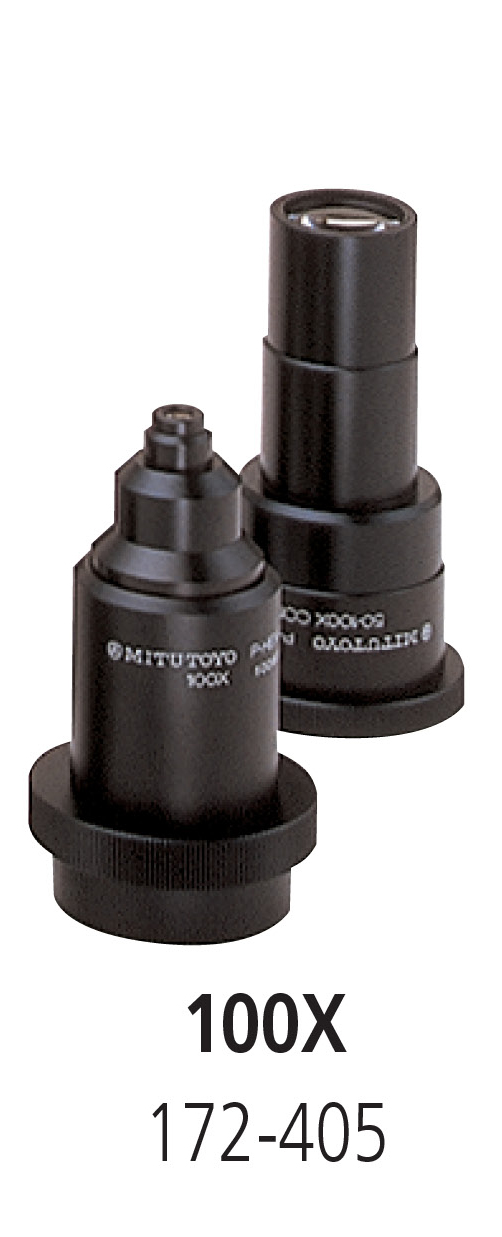

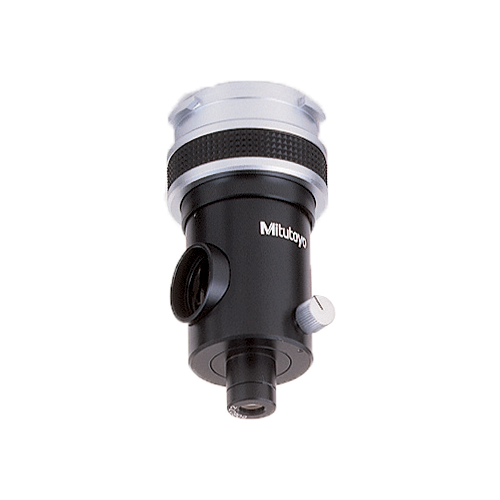

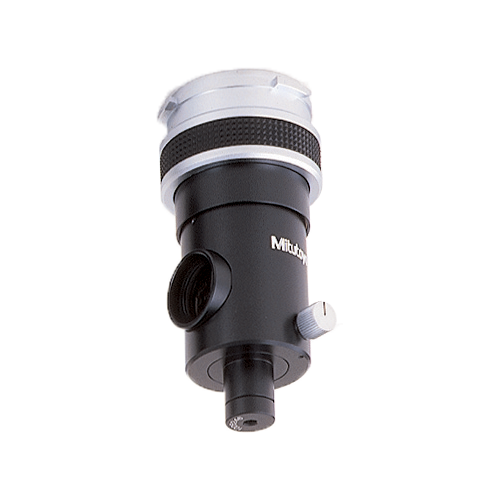

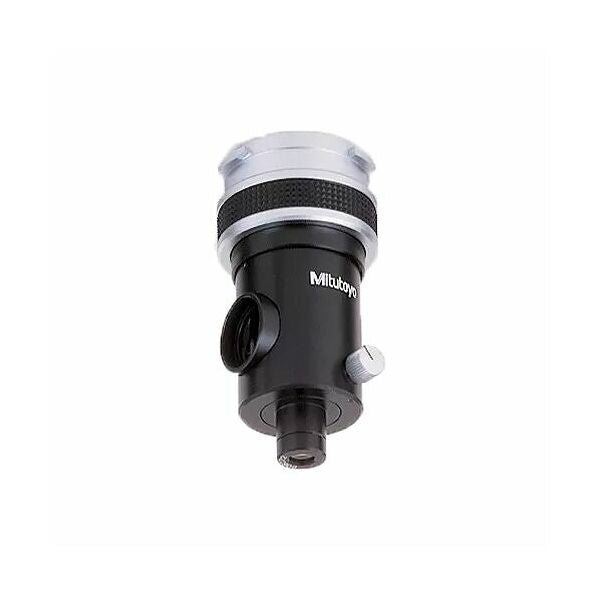

Projection lens:	10X (172-184) Optional: 5X, 20X, 50X, 100X
Magnification accuracy:	Contour illumination: ±0.1% or better Surface illumination: ±0.15% or better
Contor Illumination:	Light source: Halogen bulb (24V, 150W) Optical system: Telecentric system Functions: 2-step (High/Low) brightness adjustment, Heat-absorbing filter, Cooling fan
Surface illumination:	Light source: Halogen bulb (24V, 150W) Optical system: Vertical illumination Functions: Adjustable condenser lens, 2-step (High/Low) brightness adjustment, Heat-absorbing filter, Cooling fan
Resolution:	0,001 mm
Model:	PH-3515F
Power supply:	220 - 240V AC, 50/60Hz

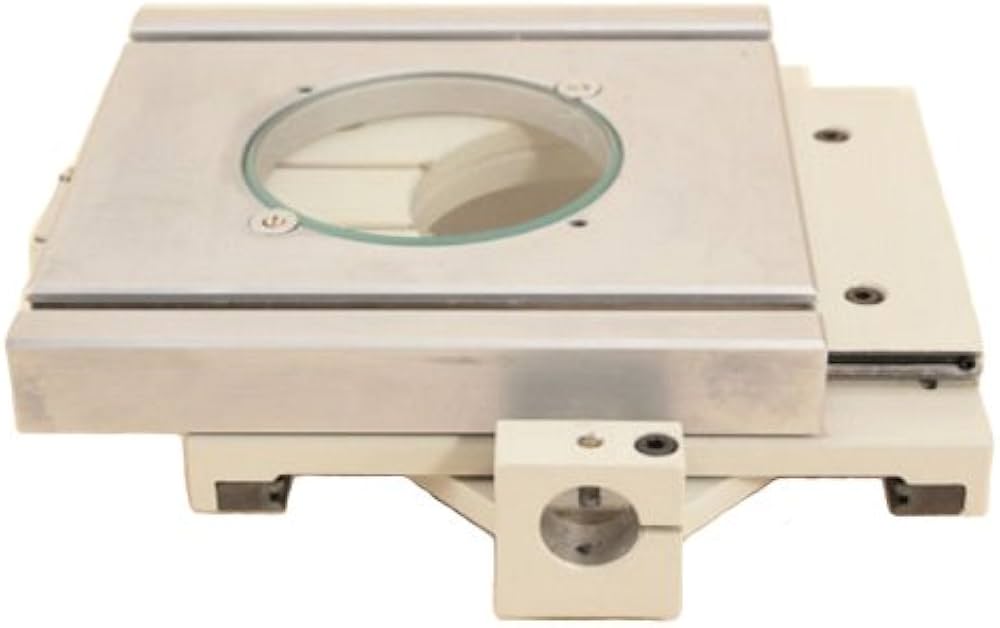

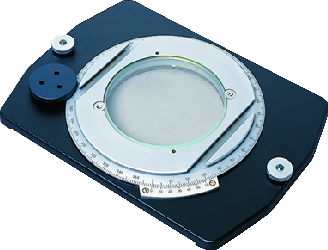

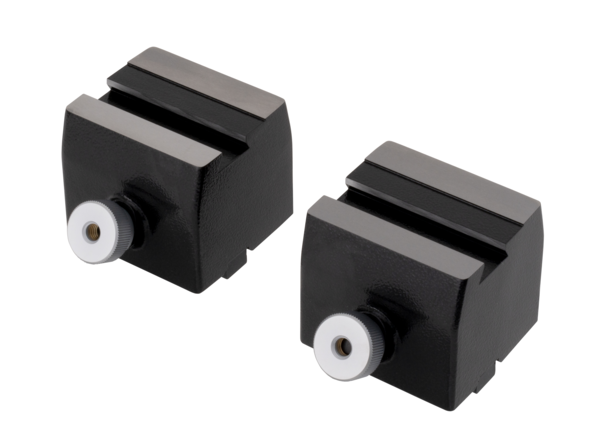

XY stage [mm]:	254 x 152
Measuring method:	Linear encoder
Quick-release mechanism:	X axis
XY stage table top size:	450 x 146 mm
Table swiveling function:	±10°
Max stage loading:	45 kg
Mass:	150 kg
