Name: U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Brand: Mitutoyo
SKU: 02AZD730G
Price: 242.0 GBP
Availability: InStock

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

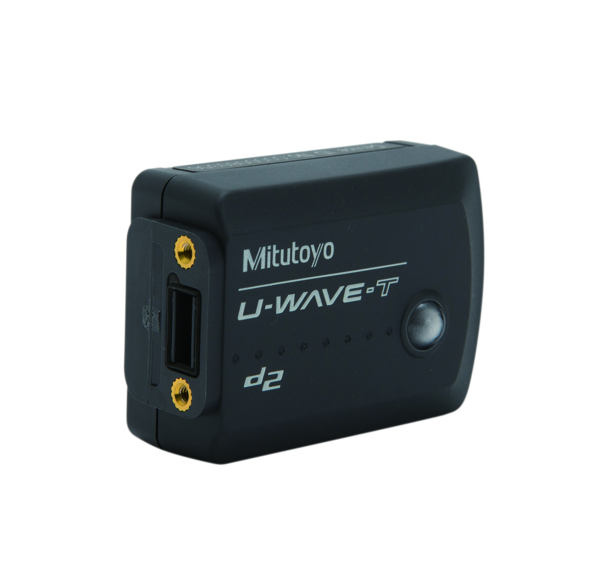

02AZD730G U-WAVE-T, IP67 Type Wireless Transmitter

U-WAVE-T, IP67 Type

Wireless Transmitter

Item number: 02AZD730G

DescriptionWireless Transmitter

Wireless communication protocol:	Proprietary (2,4 GHz by original specification based on IEEE 802.15.4)
Modulation method:	DS-SS (Direct Sequence Spread Spectrum)
Measuring Instruments:	Indicator, 3-Point Inside Micrometer, Carbon Fibre Caliper, Height Gauge, a.s.o
Remarks:	IP67
Data reception indication:	LED (green, red, orange)
Communication distance:	Approx. 20 m (within visible range)
Communication speed kbps:	250
Power supply:	Battery CR2032 x 1 pcs.
Communication with measuring tool:	Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification
Communication frequency:	2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval)
Transmission output:	2,5 mW (4 dBm) or below
OS compatibility:	Windows® 2000 Professional (?SP4), Windows® XP Professional (?SP2), Windows® XP Home Edition (?SP2), Windows Vista®, Windows® 7 (32bit, 64bit), Windows® 8, 8. 1, 10 (32bit, 64bit), 11
Battery life:	Approx. 400000 transmissions
Delivered:	With 1 battery CR2032, screwdriver

No technical information is currently available.

No application information is currently available.

Product Document U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G Click to open the PDF document
