Vacuum holder for high accuracy thickness measurement of battery foil samples

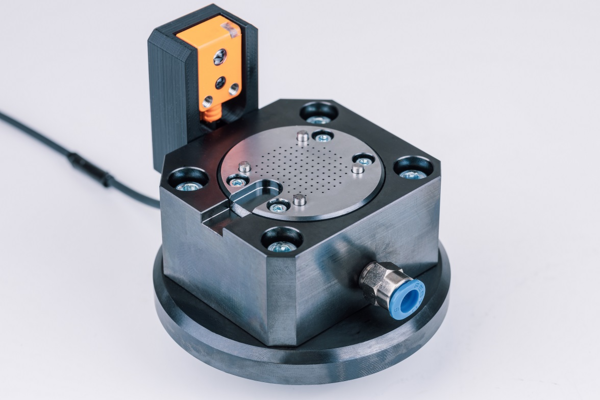

Precision Vacuum Specimen Holder for VL-50 LITEMATICItem number: K543722
Vacuum holder for high accuracy thickness measurement of battery foil samples

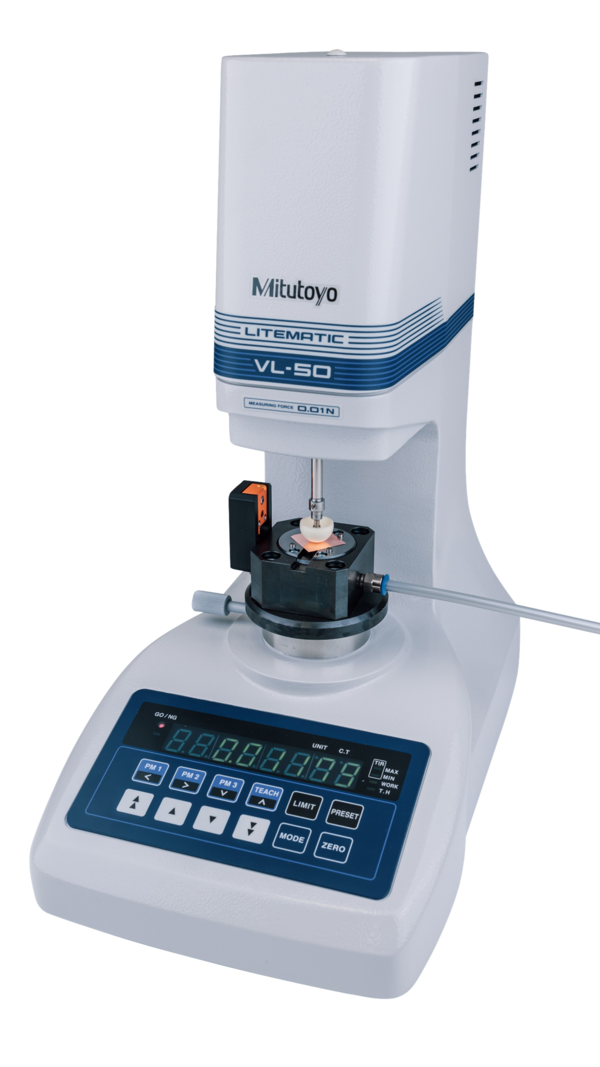

Accessory for VL-50 LITEMATIC

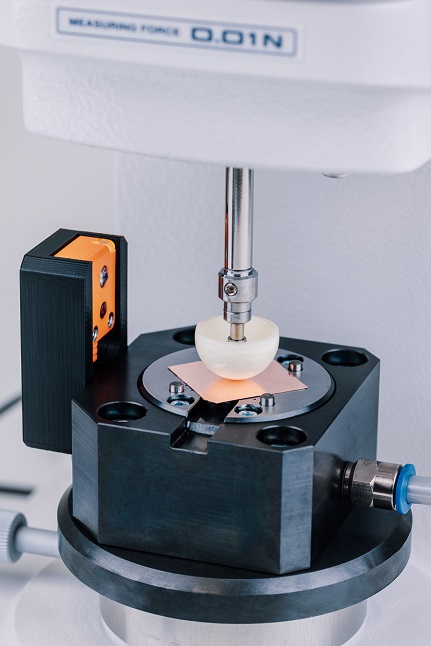

- Laser-controlled vacuum action – the vacuum is activated by moving the hemisphere stylus in the laser sensor zone.

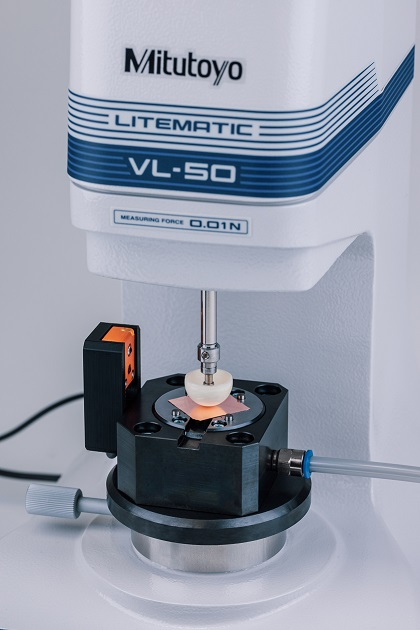

- The vacuum chuck is mounted directly on the standard LITEMATIC unit.
- It can be used for the head type LITEMATIC by mounting an adapter to the granite stand.
- suitable for measuring brittle and contact-sensitive specimens like battery anode and cathode films.
- Weight set 02AZE375 enables the application of up to 10 intermediate weights for the 0,01N, and 0,15N models (see PRE1386 and PRE1584 for details).

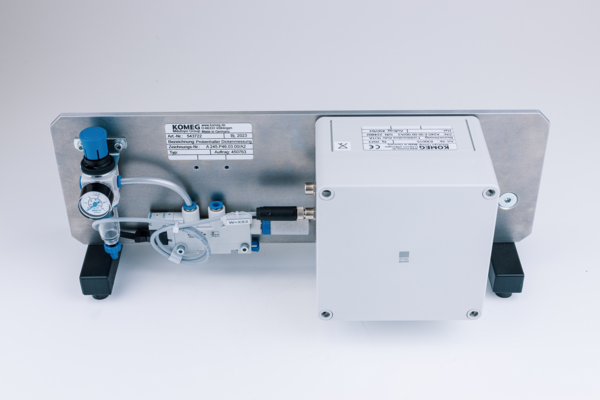

- Scope of delivery: Vacuum chuck, air unit, hemisphere stylus, thread adapter M2,5/M2, power supply.
- For full LITEMATIC specification please request leaflet PRE1386 and PRE 1584.
