TESA 03230056 GTL22 Probe Linearized ± 2mm 0.63N

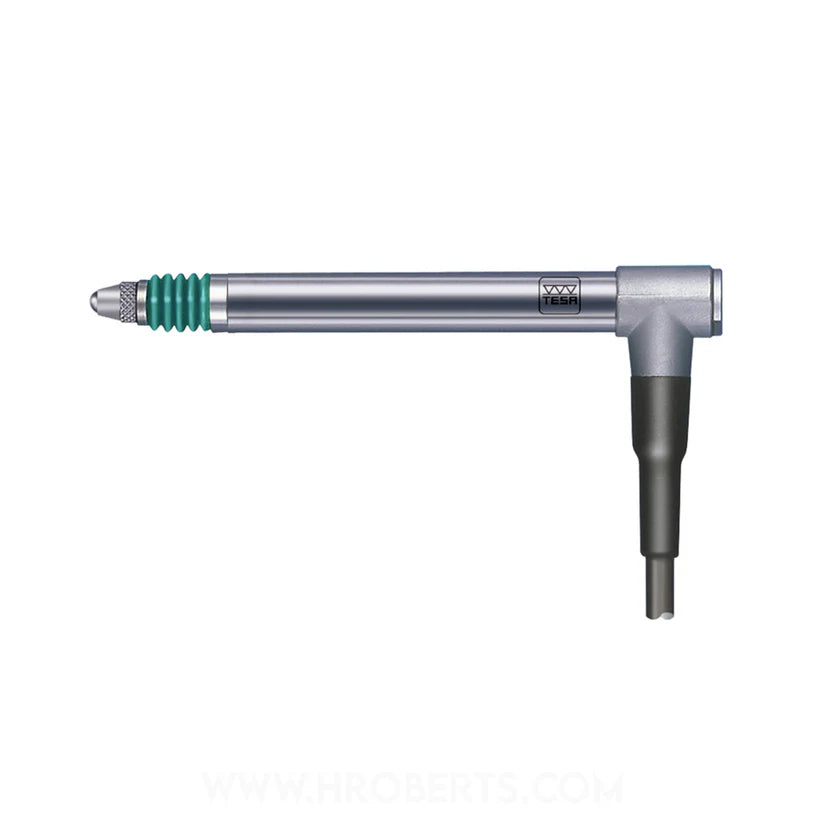

Tesa GTL22 Standard Axial Inductive Probe

Probe Features:

• Measuring range: ± 2mm
• Measuring force: 0.63N
• Bolt travel: 4.3mm
• Bolt retraction: Mechanical, vaccum
• Repeatability: 0.00001mm
• Hysteresis: 0.00002mm
• Accuracy (L in mm):
  • 0.2 + 2.4 x (L x L) µm
  • 0.2 + 0.8 x L µm (with TESA interface
• Ball insert: Tungsten carbide Ø 3mm
• Cable: 2m, Radial
• IP Rating: IP65
• Standard: DIN 32876
• • Linearized probe
  • Measuring bolt mounted on a ball bearing
  • Guiding is insensitive to any radial force exerted on the measuring boltSeparate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately
  • Ø 8 mm probe housing, can be clamped over its entire length
  • The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows

  Measurement:

  • The measuring force can be adjusted by changing the spring (depending on model)
  • The measuring inserts can be replaced or exchanged
