5,0mm Brinell TC ball indenter HR-600 Carbide ball indenter HR-600 only, without calibration certificate 11AAD723

Roll over image to zoom in Click on image to zoom

5,0mm Brinell TC ball indenter HR-600 Carbide ball indenter HR-600 only, without calibration certificate 11AAD723

Name: 5,0mm Brinell TC ball indenter HR-600 Carbide ball indenter HR-600 only, without calibration certificate 11AAD723
Brand: Mitutoyo
SKU: 11AAD723
Price: 206.0 GBP
Availability: InStock

MitutoyoSKU: 11AAD723

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£206.00

Quantity:

All prices exclude VAT, which will be added at checkout.

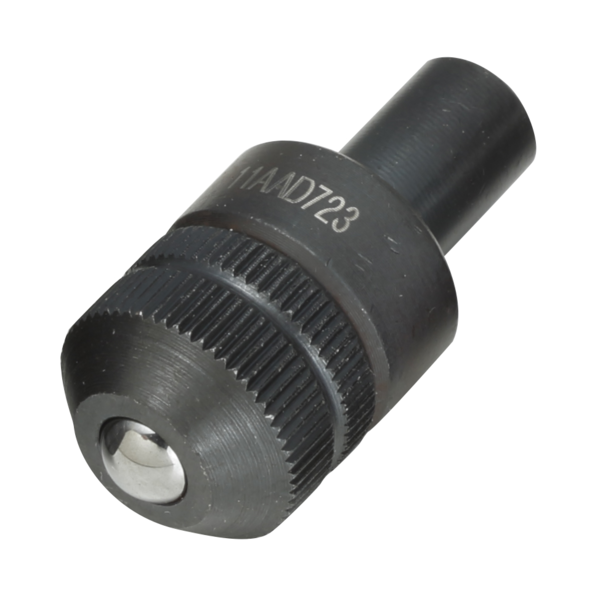

Ball indenter for Brinell test, 5 mm tungsten carbide ball

without calibration certificate

Item number: 11AAD723

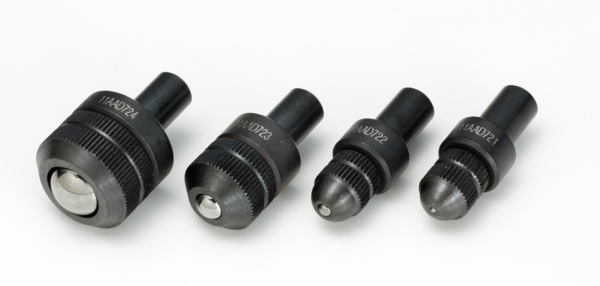

Mitutoyo indenters for Brinell hardness test

As the interface between machine and material, the indenter must be of immaculate quality.
Ball holders are made by Mitutoyo, and are supplied without calibration certificate for the included ball.
Please order a ball with DAkkS calibration certificate according to DIN EN ISO 6506-2 and ASTM E10 separately.

Please contact us if you do not find what you are looking for.

Description:	Brinell ball indenter with 5,0mm tungsten carbide ball. Calibration certificate not included.
Method:	Brinell Ball indentation test
Type:	Ball indenter
Material:	tungsten carbide
Ball Diameter mm:	5
Calibration:	without
Shaft Ø mm:	6.3
Shaft length:	10
Chamfer angle°:	20
Collar Ø mm:	12
Usable length mm:	16
Total length mm:	26
Product line:	HR-100 HR-200 HR-300 HR-400 HR-500 HR-600 AR-10, AR-20 ARK
