Name: Linear Scale Counter KA-212 174-183E
Brand: Mitutoyo
SKU: 174-183E
Price: 488.0 GBP
Availability: InStock

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

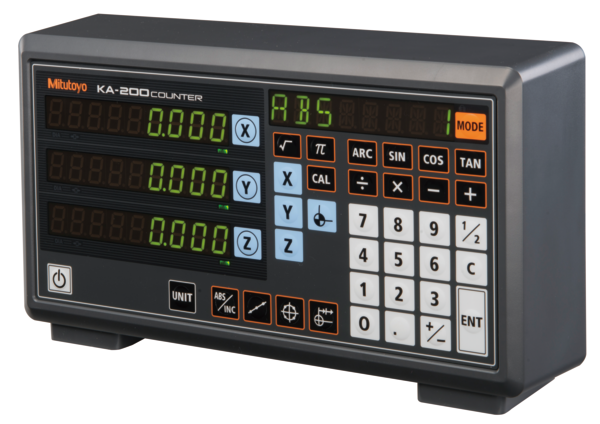

This counter displays length indication transmitted from a linear scale.
The KA-Counter offers you the following benefits:

Can be used as a “standard counter” or a “lathe counter” by modifying parameters.
Downsizing, weight saving and multiple function have been realized.
Sub display for easy operation.
Text data can be output using the optional USB interface.
The optional external interface RS-232C enables connection to a PC and a printer.

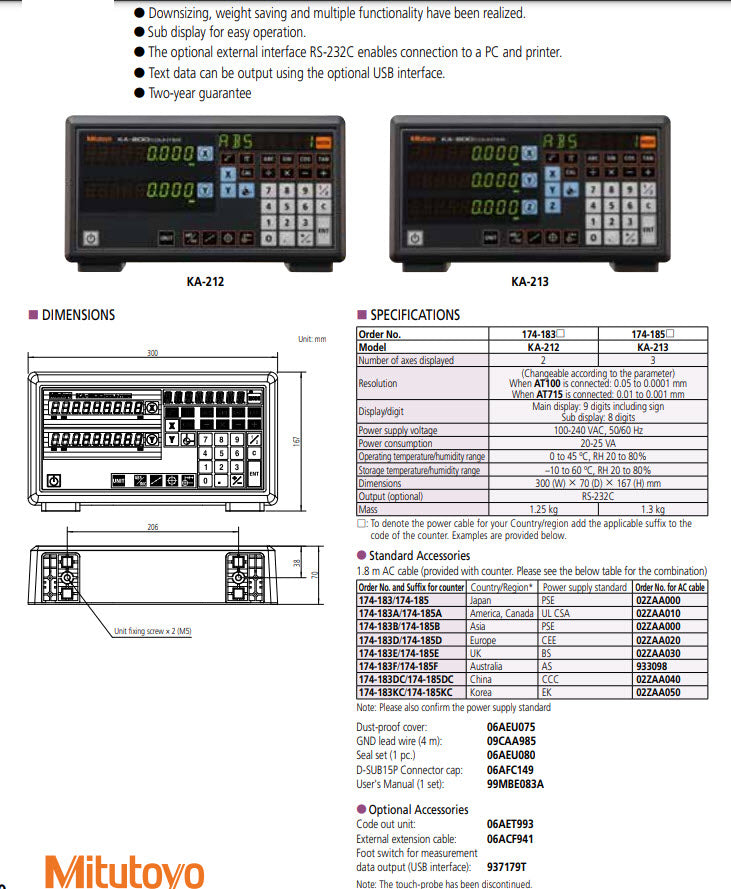

Axes:	2
Display:	7-segment, 8-digit + sign + 8-character alphabet LED display

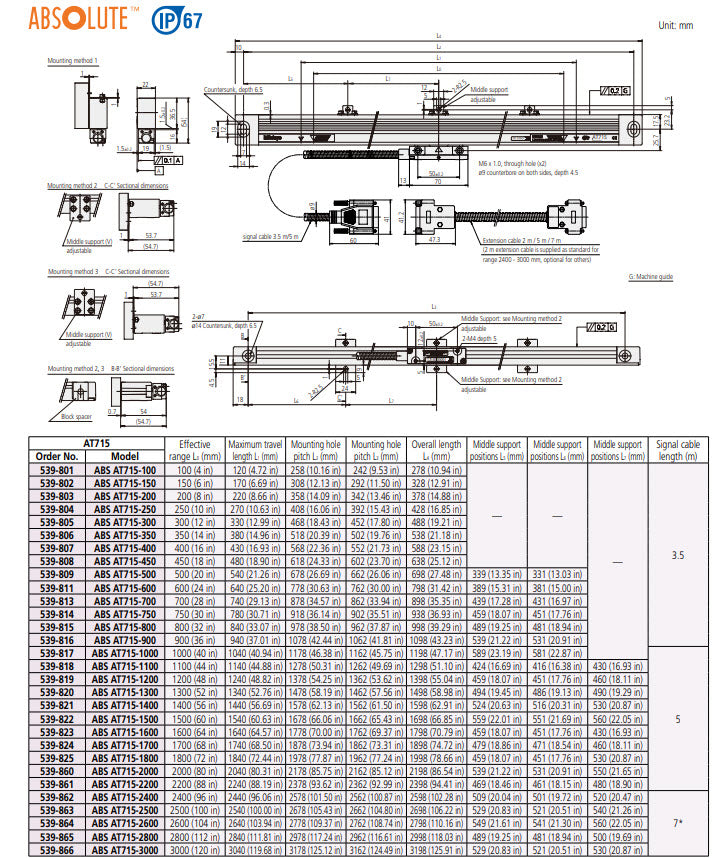

Resolution:	With AT100 Series: 0.05 - 0.0001 mm With AT715: 0.01 - 0.001 mm

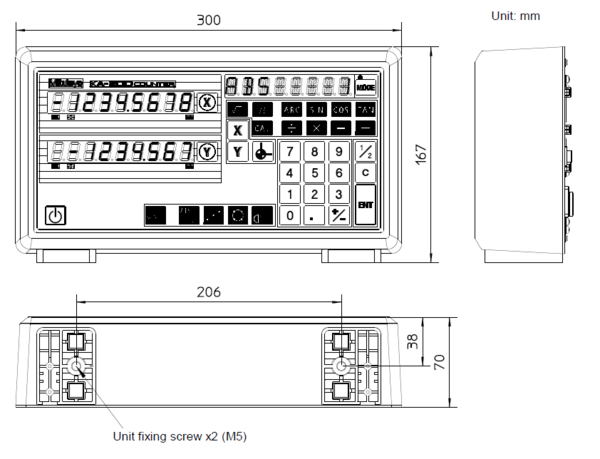

Dimensions (WxDxH):	300 x 70 x 167 mm

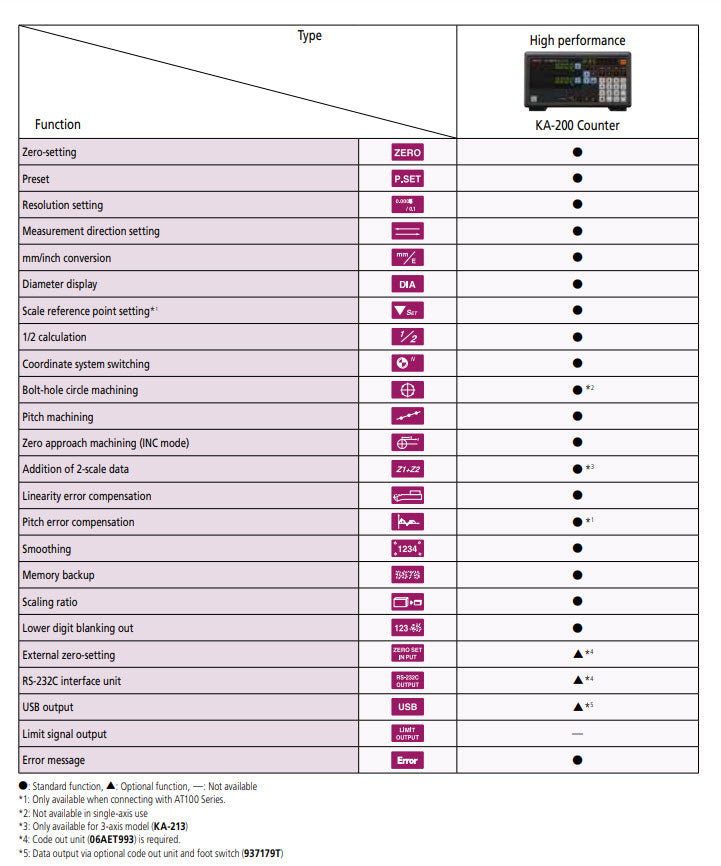

Diameter display:	Yes
Operation temperature:	0°C to 45°C
1/2 calculation:	Yes
mm/inch conversion:	Yes

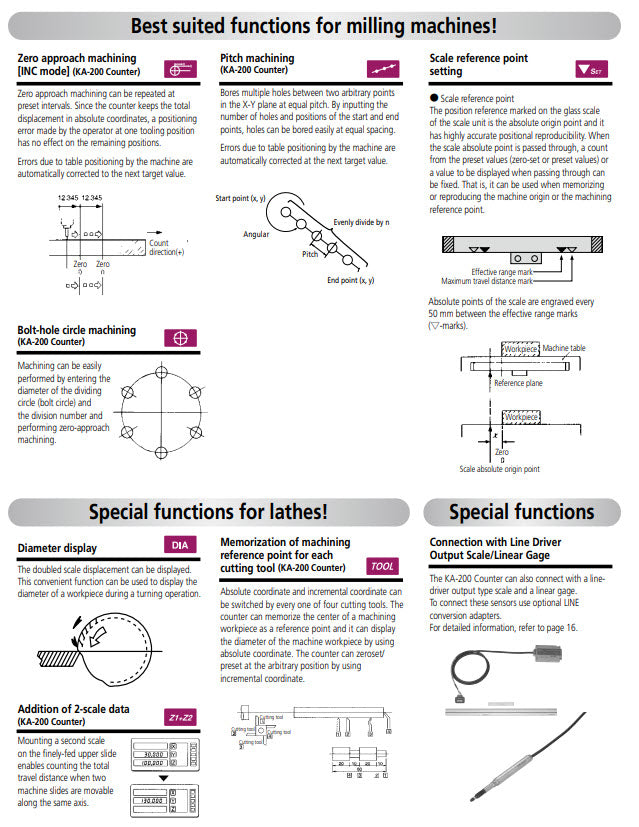

Bolt-hole circle machining:	Yes
Scale reference points:	Yes
Linearity error compensation:	Yes
Zero approach function (Incremental mode):	Yes
Mass:	1.25 kg
Addition of 2-scale data:	Yes
Coordinate system switching:	Yes
Error message:	Yes
Lower digit blanking out:	Yes
Macro functions:	Rectangular drilling and round milling newly added
Main features:	Feed speed display; taper machining function; tool data; multipoint compensation; scale check function; calculation function
Measurement direction setting:	Yes
Memory backup:	Yes
Output (optional):	RS-232C / USB
Pitch machinig:	Yes
Resolution setting:	Yes
Smoothing:	Yes

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
