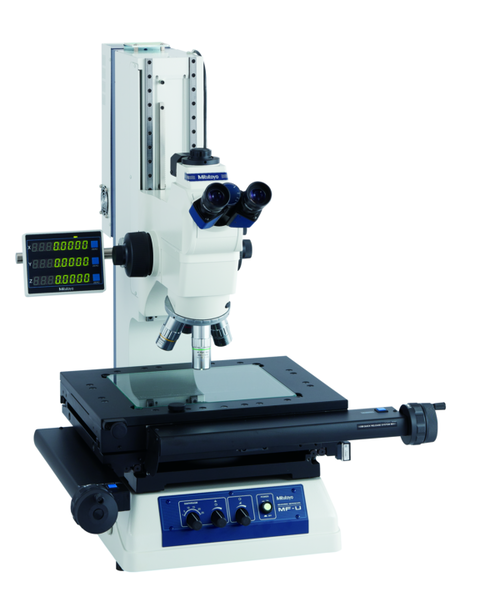

MF-UB2017D BF microscope with XYZ counter 176-978-13

MF-U Generation D: Manual models

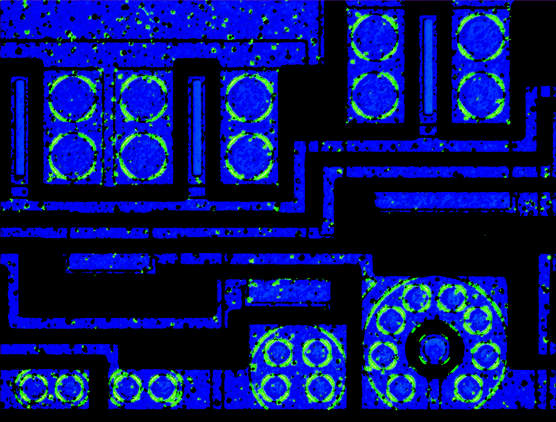

Its infinite corrected optical system allows a wide range of applications (e.g. dark-field-, polarized- and DIC-microscopy) and the use of a turret.
The MF-U offers you the following benefits:

• Measuring accuracy that is one of the highest in its class.
• Proven high-NA objectives from the FS optical system (long working distance type).
• Integration of metallurgical and measurement microscope functions enabling you to
  make high-resolution observations and high-accuracy measurements.
• Illumination unit (reflected/transmitted) gives you the option of a high-intensity LED or halogen bulb.
• The variable aperture diaphragm (reflected/ transmitted) allows observation measurement while suppressing light diffraction.
• Variety of standardized stages in sizes up to 400 × 200 mm.
• Quick-release mechanism enabling you to move the stage quickly when measuring
  large or numerous workpieces.
• High-magnification eyepiece observation up to 2000X.
• A good choice of optional accessories, including a Vision Unit, various digital cameras or data management on a PC, promises a wide field of application and excellent measuring
  efficiency.
