Surftest SJ-210R [mm] R2µm; 0,75mN; Retract-Drive 178-562-11D

MitutoyoSKU: 178-562-11D
Price: £2,550.00 Excluding VAT

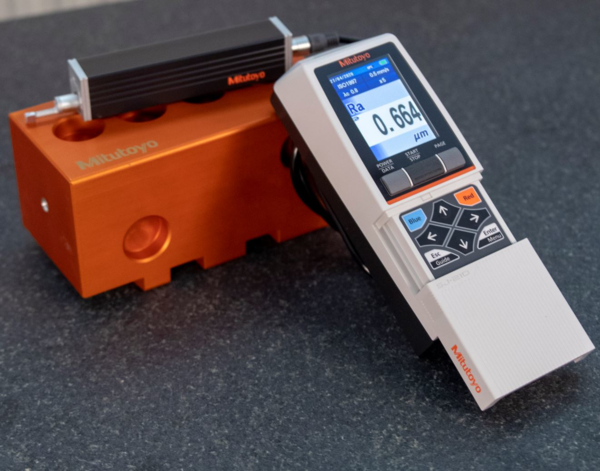

DescriptionThis is a portable measuring instrument that allows you to easily and accurately measure surface roughness.

The Surftest SJ-210 offers you the following benefits:
  • Skid system gives you user friendly and intuitive menu navigation.
  • It works independently of mains power, allowing you to make on-site measurements.

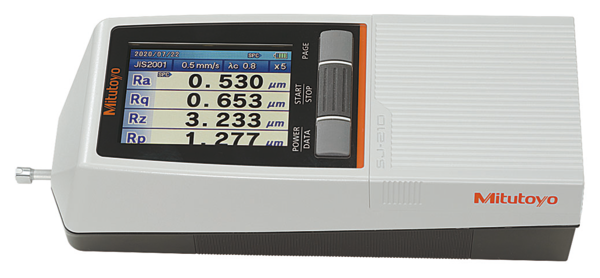

  • The 6.0 cm [2.4“] colour graphic, back-lit LCD gives you excellent readability.
  • It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.

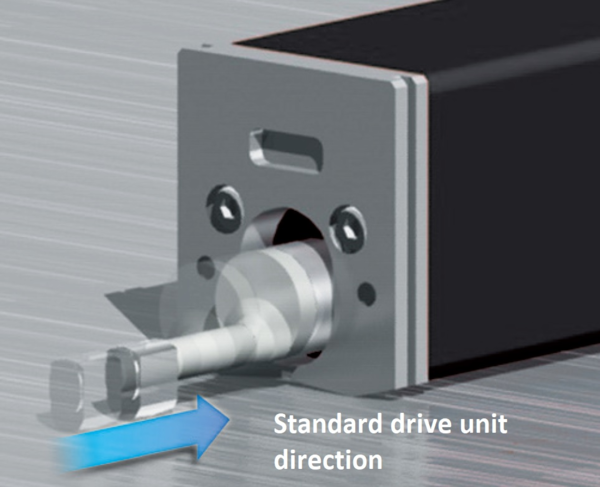

  • Different drivers expanding the range of applications.

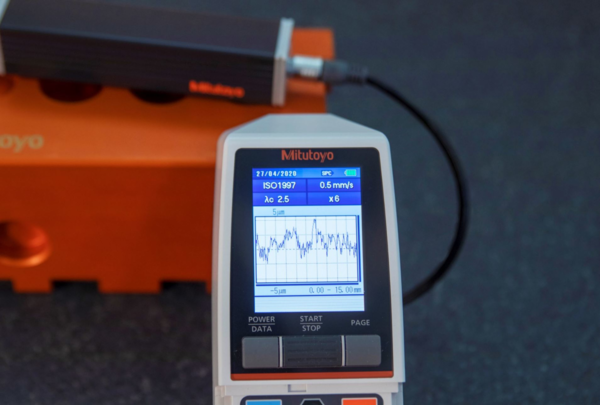

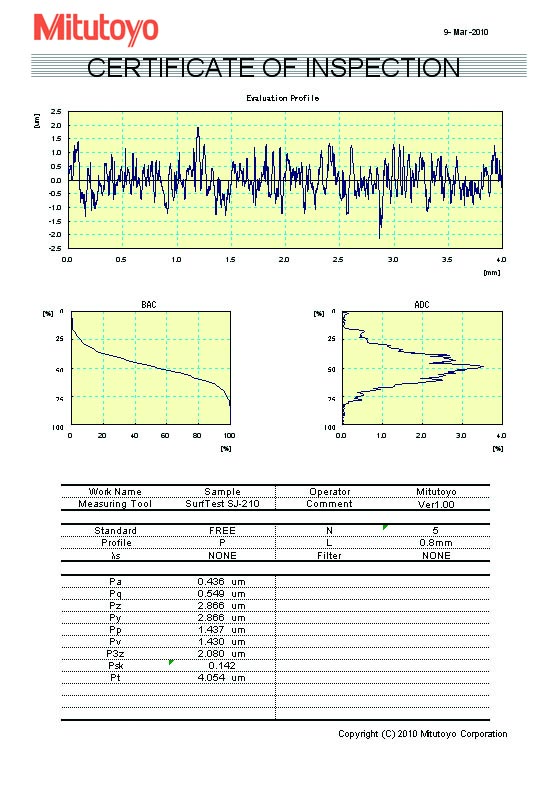

  • Calculation results, assessed profiles, bearing and amplitude curves can be displayed.
  • Support of 21 languages.
  • Operation by keys on the front and under the sliding cover.
Features
Inch-Metric:
Metric
Measuring range:
16 mm,
[S-type] 4.8 mm
Traverse:
17.5 mm,
5.6 mm [S-type]
Measuring speed:
Measuring: 0.25 mm/s; 0.5 mm/s; Returning: 0.8 mm/s
Functions:
Switchable between 16 languages: Japanese, English, German, French, Italian, Spanish, Portuguese, Czech, Polish, Hungarian, Turkish, Swedish, Dutch, Korean, Traditional Chinese, Simplified Chinese
Cable length:
1 m
Detector measuring force:
0.75 mN
Stylus tip angle:
60°
Stylus tip radius:
2 µm
Measuring method:
Induction method
Range:
360 µm
Stylus:
Diamond Tip
Skid radius:
40 mm
Profiles:
Primary Profile (P), Roughness Profile (R), DIN 4,776
Display range:

Ra, Rq: 0.01 µm - 100 µm
Ry, Rz, Rt, R3z, Rvk, Rpk, Rk, Rp:
0.02 µm - 350 µm
Vo: 0 - 10 (mm3/cm2)
S, Sm: 2 µm - 4,000 µm
Pc: 2.5/cm - 5,000/cm
Mr 1, Mr 2: 0 - 100 %
mr: 1 - 100 %
Roughness standard:
DIN, ISO, ANSI, JIS
Sampling length (L):
0.08mm, 0.25 mm, 0.8 mm, 2.5 mm
No. of sampling length (L):
x?1, x?3, x?5, x?L
Digital filter:
2CR-75%, 2CR-75% (phase corrected)
Cut-off length:
lc: 0.25 mm, 0.8 mm, 2.5 mm, ls: 2.5 µm, 8 µm
Auto-sleep:
Automatic after 30 seconds
Tolerance:
Upper/lower limit
Interface:

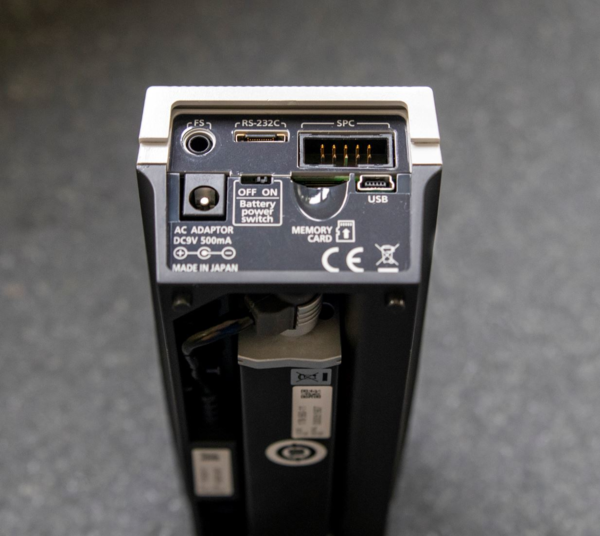

RS-232 C interface for input/output, DIGIMATIC output
Mass:
500 g
Power supply:
Via AC adapter (DC 7.5 V 1.5 W) built-in or rechargeable battery
