2-Point Inside Measuring Instrument Bore Gauge, 6-10mm, Graduation 0,001mm 511-210-20

MitutoyoSKU: 511-210-20
List price: £543.00 Offer price: £396.00 Excluding VAT

Optional Services

Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

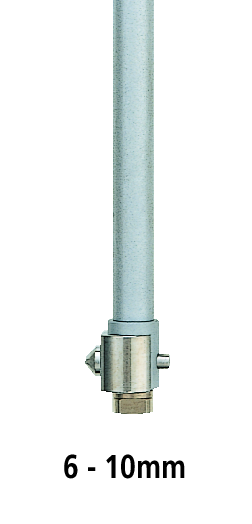

These are bore gauges that automatically self-centre via a centring bridge.
They offer you the following benefits:
  • A long plunger stroke gives you amazing accuracy.
  • Interchangeable washers 0.5 mm thick are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

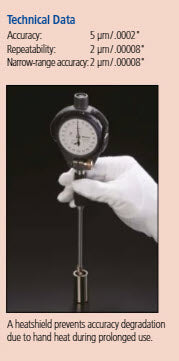

  • A large grip reduces heat transfer from the operator by 50%.

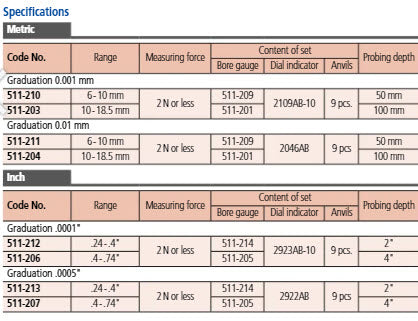

Specification
Inch-Metric:
Metric
Digital/Analog:
Analog
Range:
6 - 10 mm
Graduation:
0.001 mm
Stroke of contact point:
0.5 mm
Measuring depth:
50 mm
No. Dial Indicator:
2109AB-10

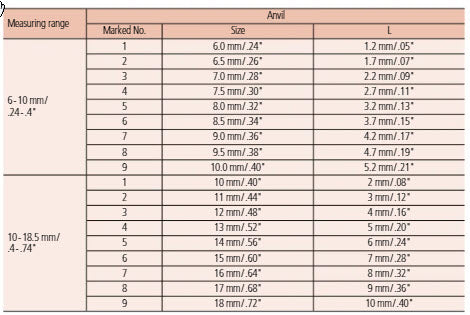

Number of anvils:
9
Accuracy:
5 µm
Repeatability:
2 µm
Measuring force:
?2 N
Delivered:

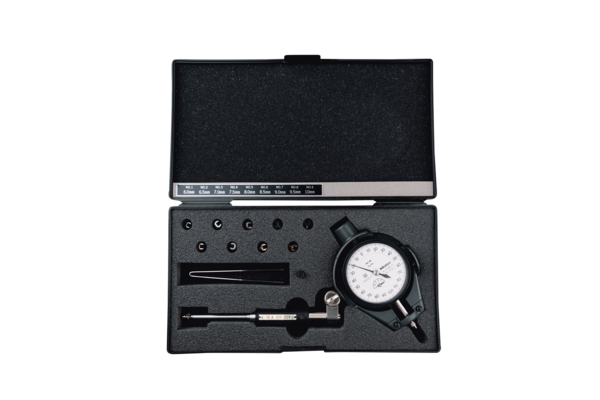

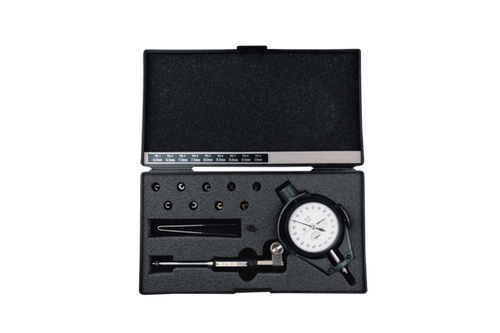

In a box with bore gauge 511-209, dial indicator 2109AB-10, plastic cover for indicator 21DZA000, 9 anvils
Mass:
255 g

No technical information is currently available.

No application information is currently available.
