MitutoyoSKU: 511-435-20
List price: £592.00 Offer price: £432.00 Excluding VAT

Optional Services

Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

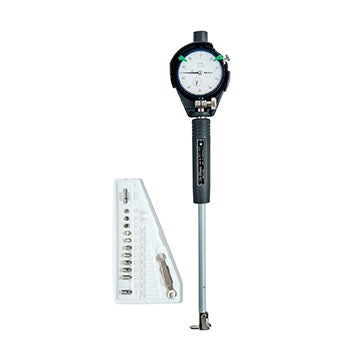

This is a bore gauge for measuring blind holes that offers you the following benefits:
  • You can measure the inside diameter close to the bottom of blind holes.
  • Contact points are carbide giving you high durability and wear resistance.
Features
Inch-Metric:
Metric
Digital/Analog:
Analog
Range:
15 - 35 mm
Graduation:
0.001 mm
Stroke of contact point:
1.2 mm
Measuring depth:
150 mm
No. Dial Indicator:
2109AB
Accuracy:
4 µm
Repeatability:
1 µm
Delivered:

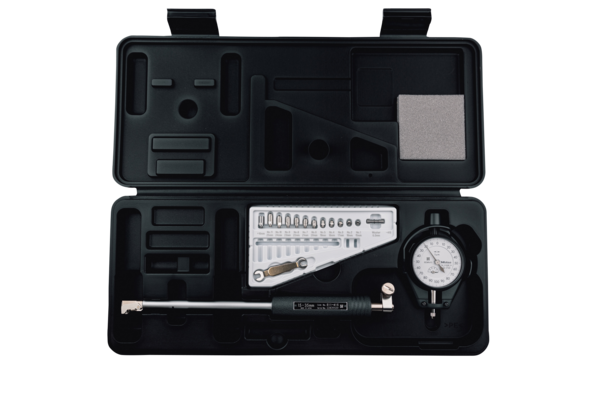

In a box with bore gauge 511-415, dial indicator 2109AB-10, plastic cover for indicator 21DZA000, 11 anvils, 1 interchangeable washer
Mass:
350 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 1 2-Point Inside Measuring Instrument Range 15-35mm, Graduation .001mm 511-435-20 Click to open the PDF document
Product Document 2 2-Point Inside Measuring Instrument Range 15-35mm, Graduation .001mm 511-435-20 Click to open the PDF document
