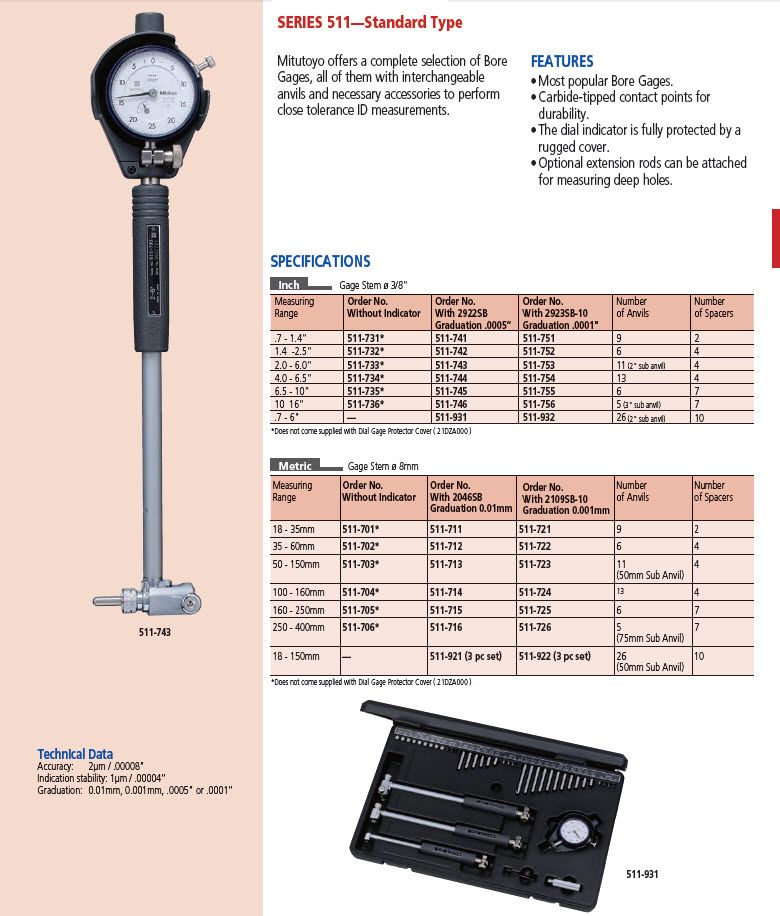

Bore Gauges- Series 511-Standard Type
Series 511
FEATURES
Mitutoyo offers a complete selection of Bore Gauges,all of them with interchangeable anvils and necessary accessories to perform close tolerance ID measurements.
Most popular Bore Gauges.
Carbide-tipped contact points for durability.
The dial indicator is fully protected by a rugged cover.
Optional extension rods can be attached for measuring deep holes.
Technical Data
Accuracy: 5µm / .0002”
Indication stability: 2µm / .00008”
Graduation: 0.01mm, 0.001mm, .0005" or .0001"
Optional Accessories
953549: 125mm / 4.92” Extension rod for 18-35mm / .7 -1.4" models
953552: 125mm / 4.92” Extension rod for 35-160mm / 1.4 - 6.5" models
953557: 125mm / 4.92” Extension rod for 160-400mm / 6.5 - 16" models
953550: 250mm / 9.84” Extension rod for 18-35mm / .7 - 1.4" models
953553: 250mm / 9.84” Extension rod for 35-160mm / 1.4 - 6.5" models
952361: 250mm / 9.84” Extension rod for 160-400mm / 6.5 - 16" models
953551: 500mm / 19.69” Extension rod for 18-35mm / .7 - 1.4" models
953554: 500mm / 19.69” Extension rod for 35-160mm / 1.4 - 6.5" models
953558: 500mm / 19.69” Extension rod for 160-400mm / 6.5 - 16" models
953555: 750mm / 29.53" Extension rod for 35-160mm / 1.4 - 6.5" models
953559: 750mm / 29.53” Extension rod for 160-400mm / 6.5 - 16" models
953556: 1000mm / 39.37” Extension rod for 35-160mm / 1.4 - 6.5" models
953560: 1000mm / 39.37” Extension rod for 160-400mm / 6.5 - 16" models
Series 511
FEATURES
Mitutoyo offers a complete selection of Bore Gauges,all of them with interchangeable anvils and necessary accessories to perform close tolerance ID measurements.
Most popular Bore Gauges.
Carbide-tipped contact points for durability.
The dial indicator is fully protected by a rugged cover.
Optional extension rods can be attached for measuring deep holes.
Technical Data
Accuracy: 5µm / .0002”
Indication stability: 2µm / .00008”
Graduation: 0.01mm, 0.001mm, .0005" or .0001"
Optional Accessories
953549: 125mm / 4.92” Extension rod for 18-35mm / .7 -1.4" models
953552: 125mm / 4.92” Extension rod for 35-160mm / 1.4 - 6.5" models
953557: 125mm / 4.92” Extension rod for 160-400mm / 6.5 - 16" models
953550: 250mm / 9.84” Extension rod for 18-35mm / .7 - 1.4" models
953553: 250mm / 9.84” Extension rod for 35-160mm / 1.4 - 6.5" models
952361: 250mm / 9.84” Extension rod for 160-400mm / 6.5 - 16" models
953551: 500mm / 19.69” Extension rod for 18-35mm / .7 - 1.4" models
953554: 500mm / 19.69” Extension rod for 35-160mm / 1.4 - 6.5" models
953558: 500mm / 19.69” Extension rod for 160-400mm / 6.5 - 16" models
953555: 750mm / 29.53" Extension rod for 35-160mm / 1.4 - 6.5" models
953559: 750mm / 29.53” Extension rod for 160-400mm / 6.5 - 16" models
953556: 1000mm / 39.37” Extension rod for 35-160mm / 1.4 - 6.5" models
953560: 1000mm / 39.37” Extension rod for 160-400mm / 6.5 - 16" models

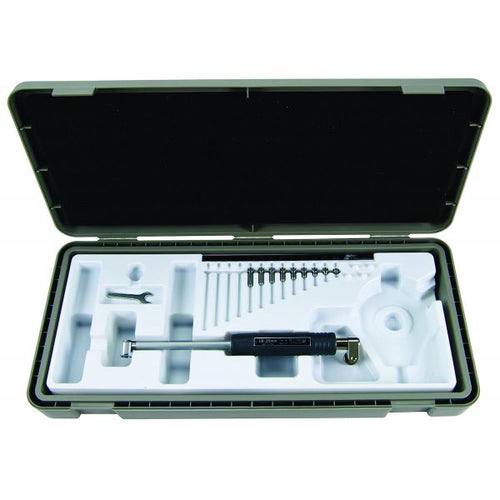

Mitutoyo Series 511 Metric Bore Gauge Without Indicator Meas. Depth: 100mm, No.: 511-701 Range: 18-35mm
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
