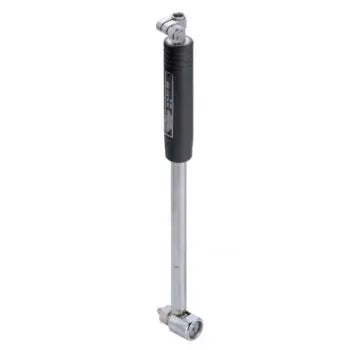

2-Point Inside Measuring Instrument 511-702

511-702 Mitutoyo Standard Type Dial Bore Gage: 35-60mm (Without Dial Gage)

The Mitutoyo 511-702 dial bore gage standard type has the following specifications:

• Range: 35-60mm
• Graduations: No Indicator Included
• 6 Anvils
• 4 Spacers

Features:

• Available in Inch or metric models
• Optional extension rods are available to measuring deep hole with accuracy
• Large, newly designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
• Fully protected by a rugged cover (except models that do not include an indicator)
• Gage stem diameter is 8mm
• Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
• Supplied in a fitted plastic case

Technical Data:

• Technology: Mechanical
• Contact Point: Carbide Tipped
• Units: Metric
• Stem Diameter: 8mm
• With Dial Gage Protective Cover (21DZA000): No

The Mitutoyo 511-702 standard type bore gage set features interchangeable anvils and spacers to take highly accurate diameter measurements of a wide range of bore hole sizes. Models are available with a Mitutoyo Dial Indicator. The Mitutoyo standard type bore gage is available in several different inch ranges to measure inside bore diameters with accuracy to +/- 2µm. The bore gage comes with interchangeable anvils to measure different bore diameters with the same gage. A pendulum guide structure permits the slide of the gage for measurements while a two-point contact system detects geometry anomalies such as roundness and taper. Mitutoyo offers a complete selection of Bore Gages. The 511 series bore gages come standard with interchangeable anvils and necessary accessories to perform close tolerance ID measurements.
