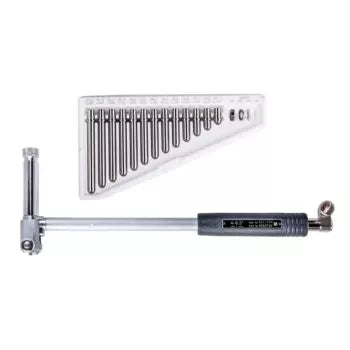

Mitutoyo 511-734 Dial Bore Gage: 4-6.5″ (No Dial Gauge) 13 Anvils 4 Spacers, stem diameter is .375″

511-734 Mitutoyo Standard Type Dial Bore Gauge: 4.0-6.5″ (Without Dial Gauge)

The Mitutoyo 511-734 dial bore gauge standard type has the following specifications:

• Range: 4.0-6.5″
• Graduations: No Indicator Included
• 13 Anvils
• 4 Spacers

Features:

• Available with a Mitutoyo Dial Indicator
• Available in Inch models
• Optional extension rods are available to measuring deep hole with accuracy
• Large, newly designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
• Fully protected by a rugged cover (except models that do not include an indicator)
• Gauge stem diameter is .375″
• Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
• Supplied in a fitted plastic case

Technical Data:

• Technology: Mechanical
• Contact Point: Carbide Tipped
• Units: Inch
• Stem Diameter: 3/8″
• With Dial Gauge Protective Cover (21DZA000): No

The Mitutoyo 511-734 standard type bore gauge set features interchangeable anvils and spacers to take highly accurate diameter measurements of a wide range of bore hole sizes. Models are available with a Mitutoyo Dial Indicator. The Mitutoyo standard type bore gage is available in several different inch ranges to measure inside bore diameters with accuracy to .00008″. The bore gauge comes with interchangeable anvils to measure different bore diameters with the same gauge. A pendulum guide structure permits the slide of the gauge for measurements while a two-point contact system detects geometry anomalies such as roundness and taper. Mitutoyo offers a complete selection of Bore Gauges. The 511 series bore gauges come standard with interchangeable anvils and necessary accessories to perform close tolerance ID measurements.
