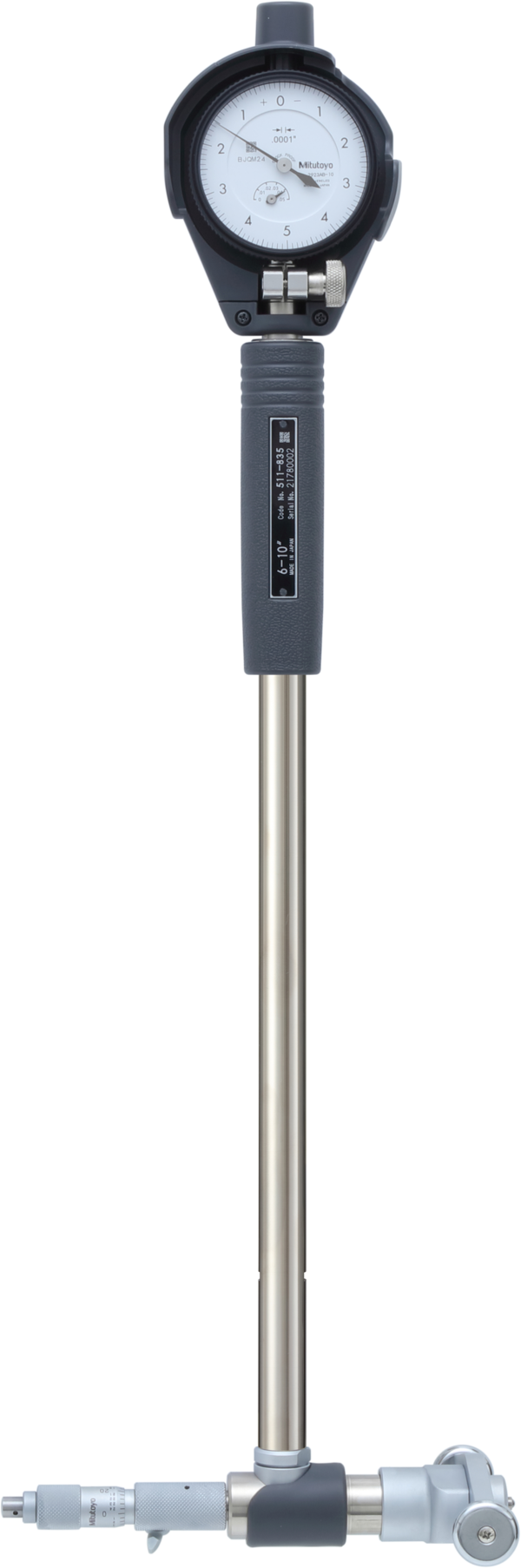

Mitutoyo 2-Point Inside Measuring Instrument Range 10-16" Graduation .0005" With Micrometer Head 511-846-20

MitutoyoSKU: 511-846-20
List price: £746.00 Offer price: £545.00 Excluding VAT

Optional Services

Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This is a micrometer head that enables measurements without interchangeable anvils.
It offers you the following benefits:
  • A long plunger stroke gives you amazing accuracy.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
  • A large grip reduces heat transfer from the operator by 50%.
  • Wide measuring range with sub-anvils.
Features
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
10-16"
Graduation:
0.0005"
Measuring depth:
6"
No. Dial Indicator:
2922AB
Micrometer
Head stroke:
0.5"
Accuracy:
2 µm
Repeatability:
0,5 µm
Sub anvils:
0.4, 0.8, 0.8, 2"
Delivered:
In a box with bore gauge 511-855, dial indicator 2922AB plastic cover for indicator 21DZA000, 4 sub-anvils, 2 spanner 301336
Mass:
850 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo 2-Point Inside Measuring Instrument Range 10-16" Graduation .0005" With Micrometer Head 511-846-20 Click to open the PDF document
