2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B
2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B
2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B
Roll over image to zoom in Click on image to zoom
2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B

2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B

MitutoyoSKU: 511-935-10
List price: £952.00 Offer price: £695.00 Excluding VAT

Optional Services

Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This is a wide range application set of Bore Gauges that automatically self-centres via a centring bridge and offers you the following benefits:
  • Carbide for the contact point ensuring high durability and wear resistance
  • It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
Specification
Inch-Metric:
Inch/Metric
Range:
0.7 - 6 "/18-150mm
Stroke of contact point:
0.063

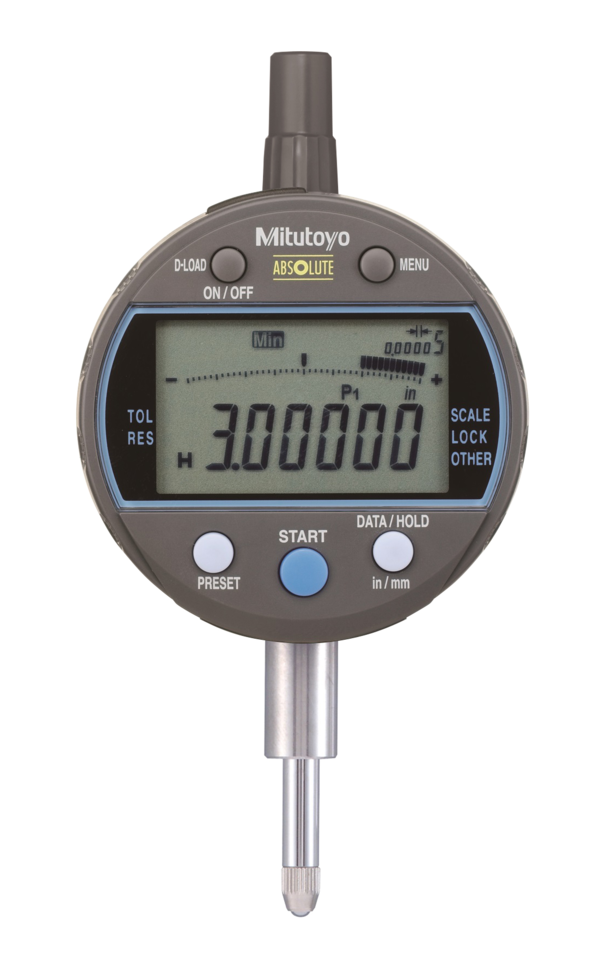

No. Dial Indicator:
543-312B-10
Accuracy:
2 µm
Repeatability:
0.5 µm
Digital/Analog:
Digital
Mass:
830
Delivered:

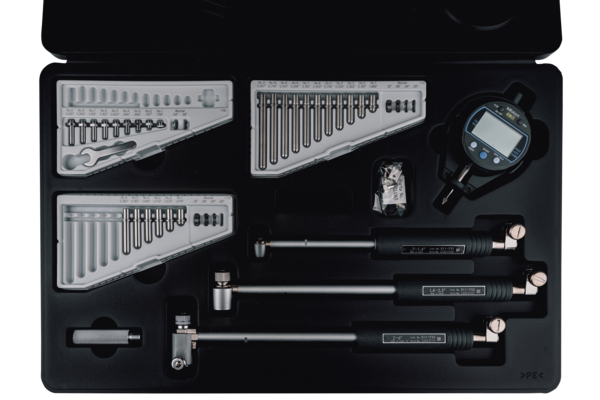

In a box with bore gauge 511-731 / 511-732 / 511-733, digital indicator 543-312B-10, plastic cover for indicator 21DZA000, 26 anvils, 10 washers, 1 sub-anvil, spanner 102148

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B Click to open the PDF document
