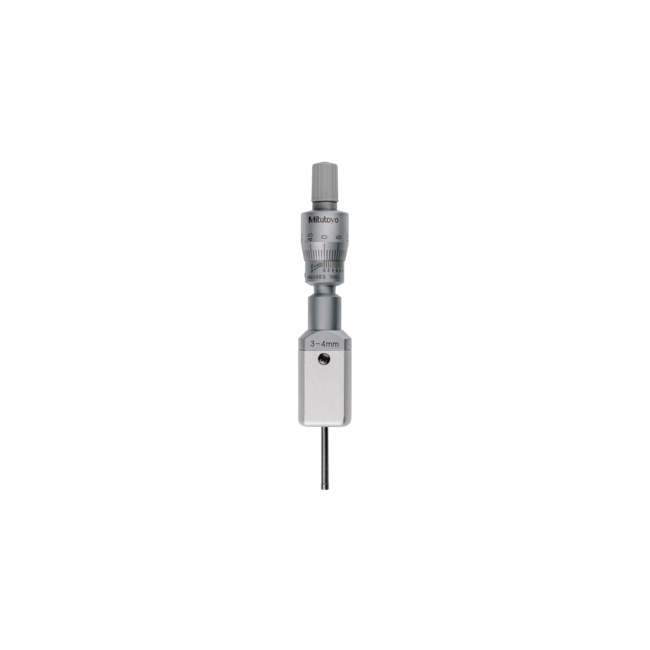

Mitutoyo 2-Point Internal Micrometer Holtest 3-4mm 368-003

Mitutoyo; 2-Point Internal Micrometer

A non-digital 2-point Mitutoyo bore micrometer suitable for measuring the diameter of small holes. Hardened steel contact faces. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement.

Bore Gauge Features

• Range: 3-4mm
• Resolution: 0.001mm
• Accuracy: ± 0.002mm
• Spindle pitch: 0.5mm
• Measuring face: Tungsten Carbide
• Scale: Up to 12 mm : Ø 17 mm / Over 12 mm : Ø 23 mm
• Mechanical
• Metric

All images are for representation only.
