Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992
Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992
Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992
Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992
Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992
Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992
Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992
Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992
Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992
Roll over image to zoom in Click on image to zoom
Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992

Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992

MitutoyoSKU: 368-992
List price: £1,890.00 Offer price: £1,380.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

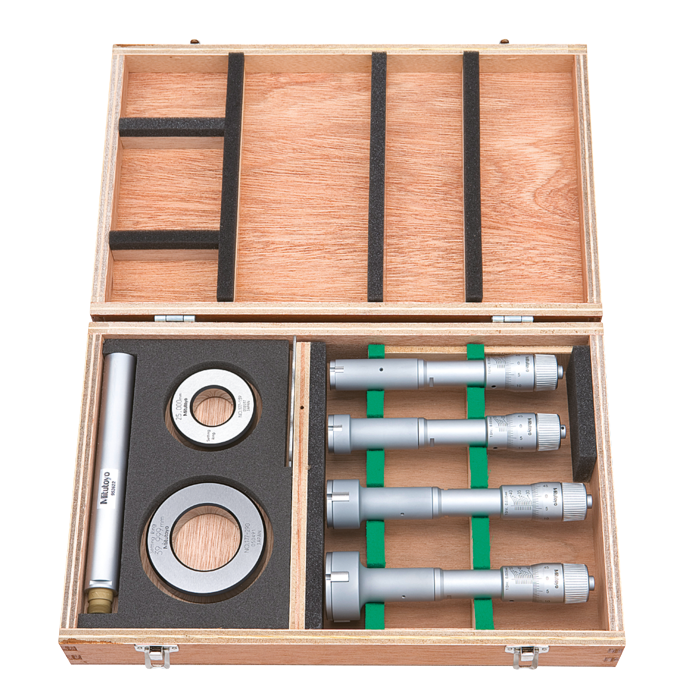

A Mitutoyo internal micrometer set consisting of individual gauges, the appropriate setting rings and an extension tube for depth measurement applications. Contact surfaces made of hardened steel. A ratchet guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
20 - 50 mm
Graduation:
0,005 mm
Individual ranges:
20-25, 25-30, 30-40, 40-50 mm
Scale:

Thimble and sleeve satin chrome finish,
Up to 12 mm : Ø 17 mm
Over 12 mm : Ø 23 mm
Measuring spindle:
Spindle pitch 0,5 mm
Measuring face:
Hardened steel
taper: hardened steel
Measuring method:
3-point
Models included:

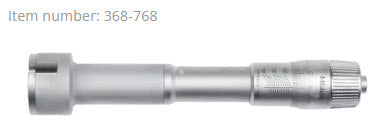

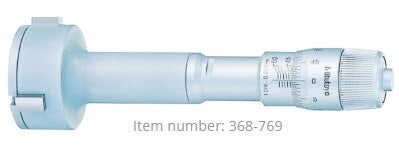

368-766 / 368-767 368-768 / 368-769
Setting rings included:

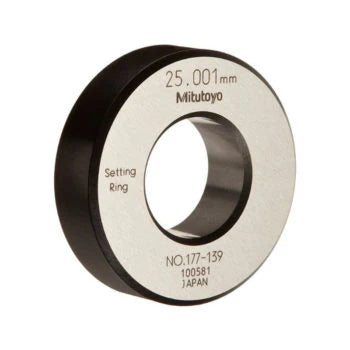

ø25 mm (177-139)
ø40 mm (177-290)
Delivered:

Including box, key, setting ring, extension rod, certificate of inspection (measuring instruments only)
Delivered:
Including box, spanner (2 pcs.), hex wrench, certificate of inspection, setting rings (2 pcs.), extension rod
Mass:
1160 g

No technical information is currently available.

No application information is currently available.

Product Video

Product Documents

Product Document 1 Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992 Click to open the PDF document
Product Document 2 Mitutoyo 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.) 368-992 Click to open the PDF document
