MitutoyoSKU: 2416AB-10
List price: £98.10 Offer price: £72.00 Excluding VAT

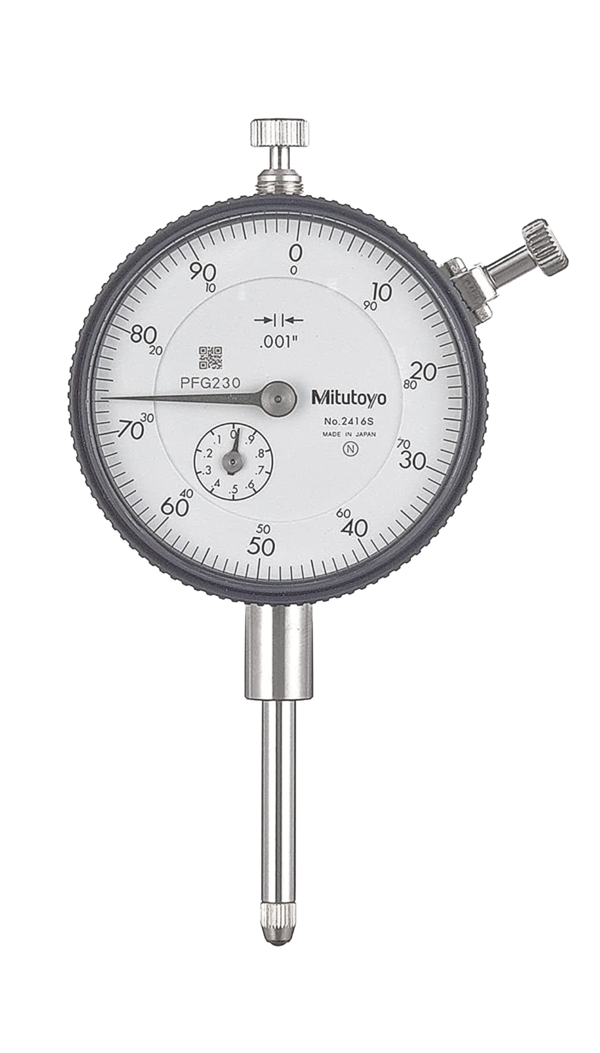

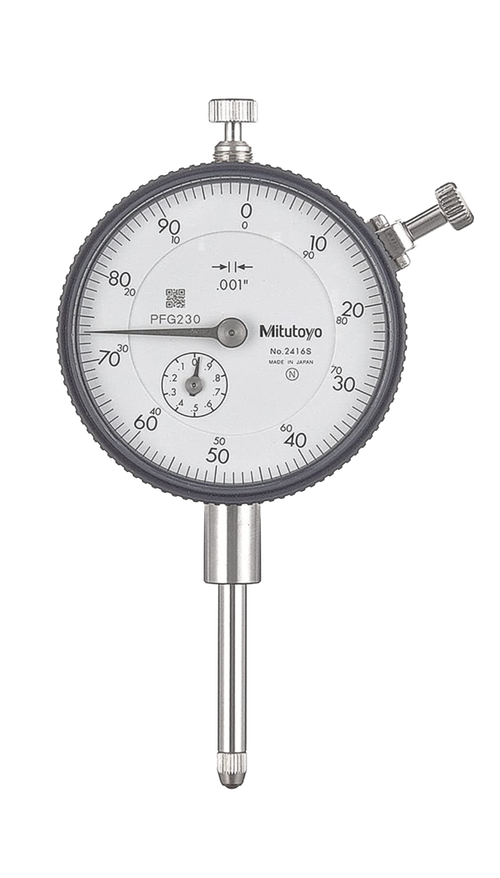

This is a standard, inch dial indicator. It offers you the following benefits:

  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
Features
Digital/Analog:
Analog
Inch-Metric:
Inch
Delivered:
With certificate of inspection, bezel clamp
Range:
1 "
Range
per rev.:
0,1"
Dial reading:
±0-100
Graduation:
0,001"
H MPE (Hysteresis):
0,0002"
R MPE (Repeatability):
±0,0002"
MPE first one revolution:
±0,001"
MPE first 2 1/2 revolutions:
±0,001"
MPE > 2 1/2-10 revolutions:
±0,002"
Type:
ANSI/AGD Standard
Measuring force:
0,4-1,8 N
Mass:
139 g
Stem:
9.52 mm / 0.375"
Contact point:
Carbide tipped, thread: 4-48UNF
Continuous dial:
Yes

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 1 Dial Gauge, Flat Back, ANSI/AGD Type Jewelled Bearing, 1", 0,001" 2416AB-10 Click to open the PDF document
Product Document 2 Dial Gauge, Flat Back, ANSI/AGD Type Jewelled Bearing, 1", 0,001" 2416AB-10 Click to open the PDF document
