QM-DATA200 (Arm type) 2D Data processor w/o power cord 264-161-13

Roll over image to zoom in Click on image to zoom

QM-DATA200 (Arm type) 2D Data processor w/o power cord 264-161-13

Name: QM-DATA200 (Arm type) 2D Data processor w/o power cord 264-161-13
Brand: Mitutoyo
SKU: 264-161-13
Price: 1904.6 GBP
Availability: InStock

MitutoyoSKU: 264-161-13

All prices exclude VAT, which will be added at checkout.

Price:

£1,904.60 £2,140.00

Quantity:

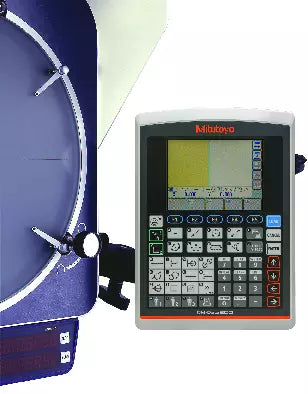

The Data Processing Unit QM-Data 200 has been especially designed to process measurement
data generated by a profile projector or measuring microscope.
The QM-Data 200 offers you the following benefits:

Measuring instructions, measuring values and calculation results for various operations are shown on the back-lit LCD in a clear, easy to understand style.
You can also print measuring results, either on a small and convenient thermal printer
(available as a special option) or on an ESC/P printer and continuous paper.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	264-161-13
Resolution	1 / 0,1 µm
Data Output	USB, RS-232C, Printer
Weight	2.8kg
Manufacturer	Mitutoyo

Resolution:	1 / 0,1 µm
Power supply:	100/240V AC, 50/60 Hz
Data output:	USB, RS-232C, Printer
Measuring of Geometric Elements:	Maximum of 1000 elements, point, line, circle, distance, ellipse, rectangular hole, slotted hole, intersection and intersecting angle and point & angle, plus a number of functions for evaluation, e.g. perpendicularity and parallelism are provided.
Measurement result file output:	CSV format; MUX-10F format

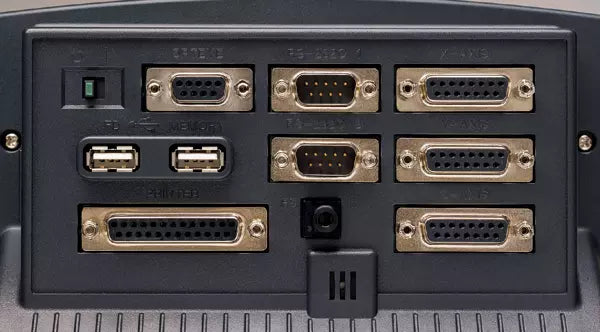

Data input:	USB, RS-232C, X/Y/Z-axis signal, Footswitch
Mass:	2.8 kg
