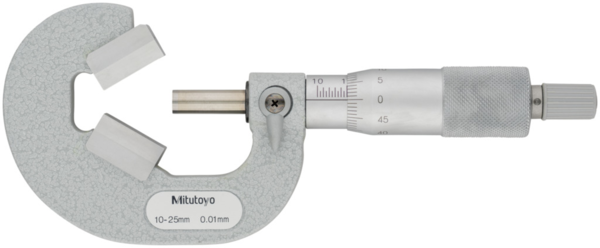

Mitutoyo 3 Flute V-Anvil Micrometer 10-25mm 114-162
Mitutoyo 3 Flute V-Anvil Micrometer 10-25mm 114-162
Mitutoyo 3 Flute V-Anvil Micrometer 10-25mm 114-162
Roll over image to zoom in Click on image to zoom
Photo 1 of 3 More photos — use the arrows
Mitutoyo 3 Flute V-Anvil Micrometer 10-25mm 114-162Mitutoyo 3 Flute V-Anvil Micrometer 10-25mm 114-162Mitutoyo 3 Flute V-Anvil Micrometer 10-25mm 114-162

Mitutoyo 3 Flute V-Anvil Micrometer 10-25mm 114-162

MitutoyoSKU: 114-162
List price: £459.00 Offer price: £337.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
UKAS Calibration of Setting Disc
£25.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Setting Standard V-Anvil Micrometer 0,2" 167-337
Part number: 167-337  → View product
Setting Standard V-Anvil Micrometer 0,4" 167-338
Part number: 167-338  → View product
Setting Standard V-Anvil Micrometer 1" 167-339
Part number: 167-339  → View product
Setting Standard V-Anvil Micrometer 1,6" 167-340
Part number: 167-340  → View product
Setting Standard V-Anvil Micrometer 2,2" 167-341
Part number: 167-341  → View product
Setting Standard V-Anvil Micrometer 2,8" 167-342
Part number: 167-342  → View product
Setting Standard V-Anvil Micrometer 3,4" 167-343
Part number: 167-343  → View product
This V-Anvil Micrometer helps you measure cutting tools and taps.
It offers the following benefits:
  • It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.
  • V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

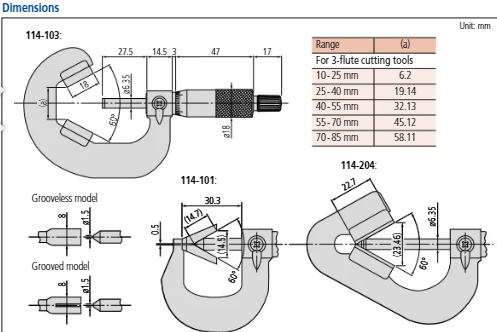

Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
10 - 25 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±4 µm
Anvil:
Without groove
Measuring face:
Prism angle 60°/108°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Setting standard:
167-328 ø 10 mm
Delivered:
Including box, setting standard, key
Mass:
280 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo 3 Flute V-Anvil Micrometer 10-25mm 114-162 Click to open the PDF document
