Mitutoyo 3 Flute V-Anvil Micrometer 25-40mm 114-103

Roll over image to zoom in Click on image to zoom

Mitutoyo 3 Flute V-Anvil Micrometer 25-40mm 114-103

Name: Mitutoyo 3 Flute V-Anvil Micrometer 25-40mm 114-103
Brand: Mitutoyo
SKU: 114-103
Price: 312.2 GBP
Availability: InStock

MitutoyoSKU: 114-103

All prices exclude VAT, which will be added at checkout.

Price:

£312.20 £446.00

Quantity:

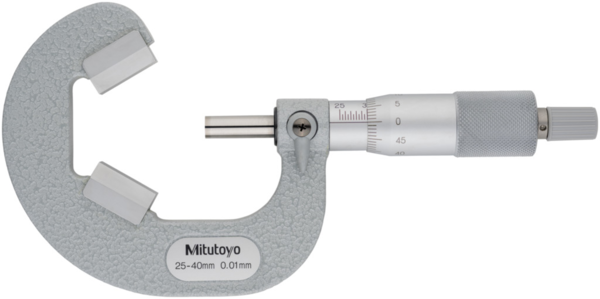

A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 3-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	114-103
Measuring Range	25-40mm
Accuracy	+/-.005mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	5-10N
Type	V-Anvil
Graduation on Thimble	.01mm
Constant Force Device	Ratchet Stop
Anvils & Spindle Design	Anvil is 60 Degrees
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	25 - 40 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±5 µm
Anvil:	Without groove
Measuring face:	Prism angle 60°/108°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Setting standard:	167-329 ø 25 mm
Delivered:	Including box, setting standard, key
Mass:	400 g
