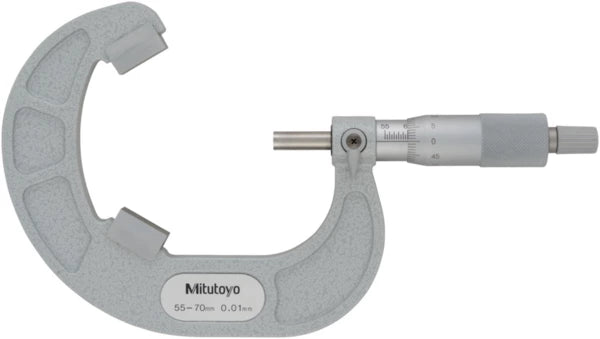

Mitutoyo 3 Flute V-Anvil Micrometer 55-70mm 114-105

MitutoyoSKU: 114-105
List price: £532.00 Offer price: £388.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
UKAS Calibration of Setting Disc
£25.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This V-Anvil Micrometer helps you measure cutting tools and taps.
It offers the following benefits:
  • It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.
  • V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.
Specification
Digital/Analog:
Analog
Delivered:

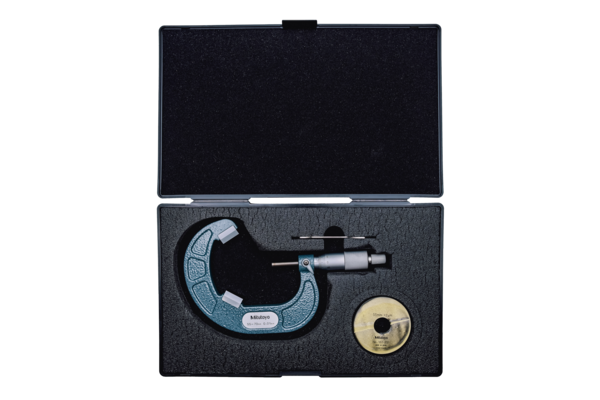

Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
55 - 70 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±6 µm
Anvil:
Without groove
Measuring face:
Prism angle 60°/108°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Setting standard:
167-331 ø 55 mm
Delivered:
Including box, setting standard, key
Mass:
675 g

No technical information is currently available.

No application information is currently available.
