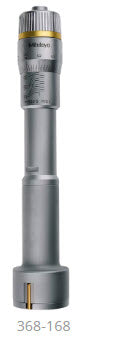

Mitutoyo 3-Point Internal Micrometer Holtest 30-40mm 368-168

Mitutoyo; 3-Point Internal Micrometer

A non-digital 3-point Mitutoyo bore micrometer with titanium-coated measuring pins. The 3-point design enables stable measurement through automatic centering. The maximum measuring depth can be increased by 150mm using an optional extension rod if required. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement.

Optional extra - extension rod, part number 952622

Bore Gauge Features

• Range: 30-40mm
• Resolution: 0.005mm
• Accuracy: ± 0.003mm
• Spindle pitch: 0.5mm
• Measuring face: Tungsten Carbide
• Scale: Up to 12 mm : Ø 17 mm / Over 12 mm : Ø 23 mm
• Mechanical
• Metric

All images are for representation only.
