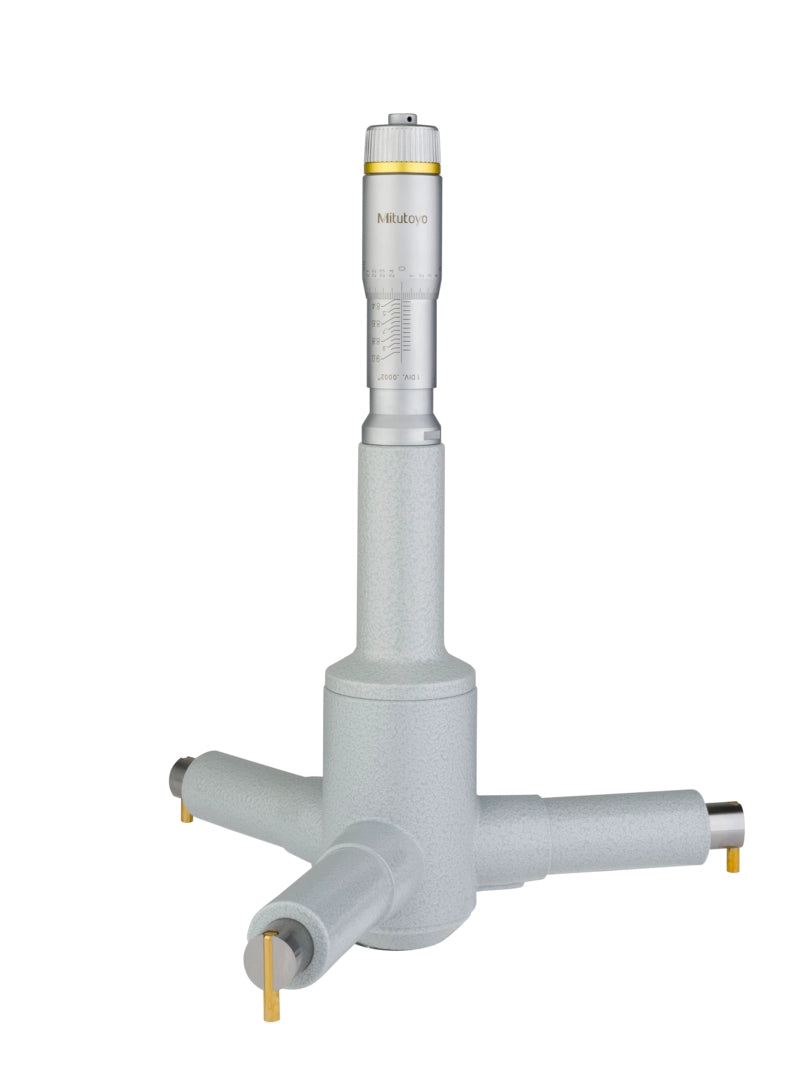

Mitutoyo 3-Point Internal Micrometer Holtest 8.00-9.00" 368-278

Mitutoyo; 3-Point Internal Micrometer

A non-digital 3-point Mitutoyo bore micrometer with titanium-coated measuring pins. The 3-point design enables stable measurement through automatic centering. The maximum measuring depth can be increased by 150mm using an optional extension rod if required. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement.

Optional extra - extension rod, part number 952623

Bore Gauge Features

• Range: 8-9″
• Resolution: 0.0002″
• Accuracy: ± 0.0003″
• Spindle pitch: 0.635mm
• Measuring face: Tungsten Carbide
• Scale: Up to 0.5″ : Ø 17 mm / Over 0.5″ : Ø 23 mm
• Mechanical
• Inch

All images are for representation only.
