Mitutoyo; 3-Point Internal Micrometer

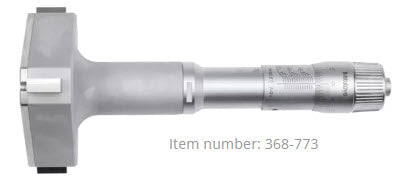

Holetest (Type II) Three-Point Bore Micrometer
- Hardened tool-steel anvils (instead of titanium-coated carbide) allow a more economically priced tool.
- Same accuracy as the titanium-coated models
- Constant-force device allows repeatable measurements
- Measurements can be made close to the bottom of a blind hole
- Can measure deep holes using an extension rod (optional accessory)
- Optional setting rings available - optional.
Optional extra - extension rod, part number 952622
Bore Gauge Features
- Range: 87-100mm
- Resolution: 0.005mm
- Accuracy: ± 0.004mm
- Spindle pitch: 0.5mm
- Measuring face: Hardened Steel
- Scale: Up to 12 mm : Ø 17 mm / Over 12 mm : Ø 23 mm
- Mechanical
- Metric
All images are for representation only.
No technical information is currently available.
No application information is currently available.
