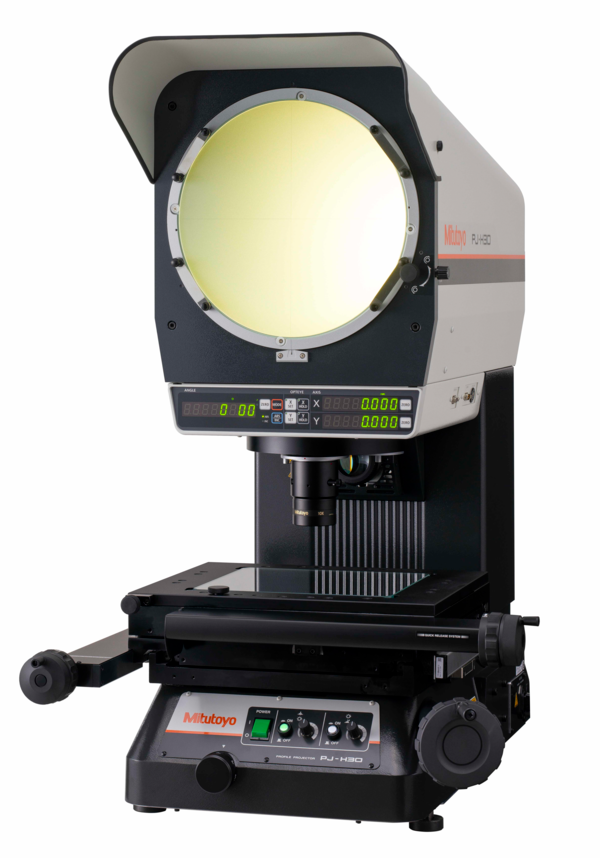

303-716-13 PJ-H30A1010B Profile projector w/o power coord

Name: 303-716-13 PJ-H30A1010B Profile projector w/o power coord
Brand: Mitutoyo
SKU: 303-716-13
Price: 15165.6 GBP
Availability: InStock

MitutoyoSKU: 303-716-13

All prices exclude VAT, which will be added at checkout.

Price:

£15,165.60 £17,040.00

Quantity:

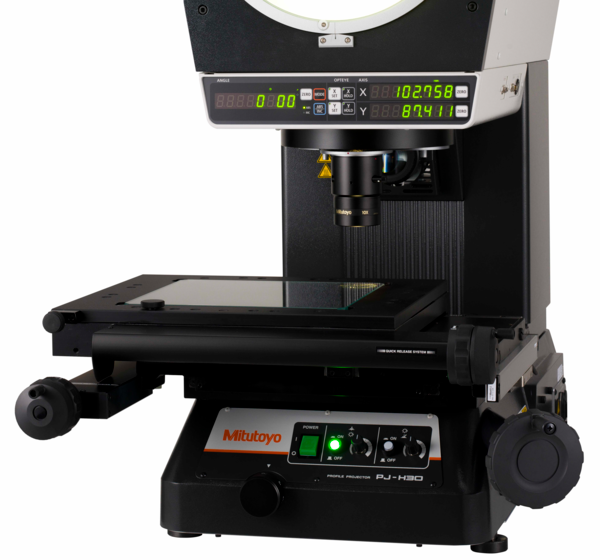

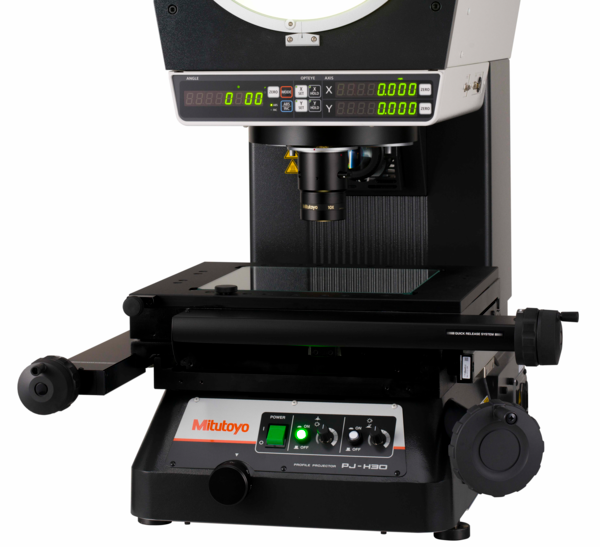

This measuring projector has adjustable incident illumination.
The PJ-H30 offers you the following benefits:

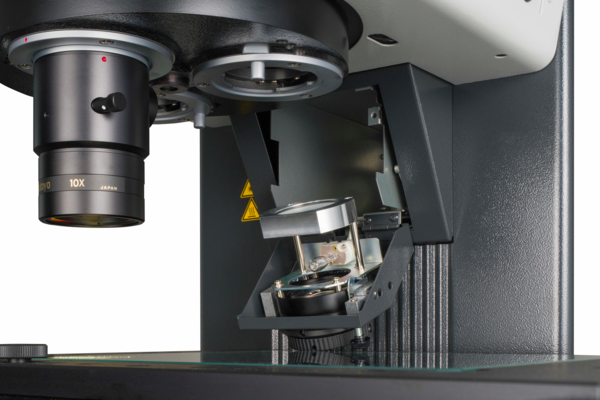

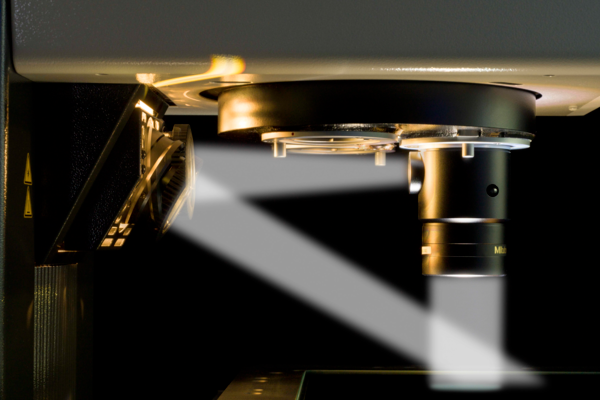

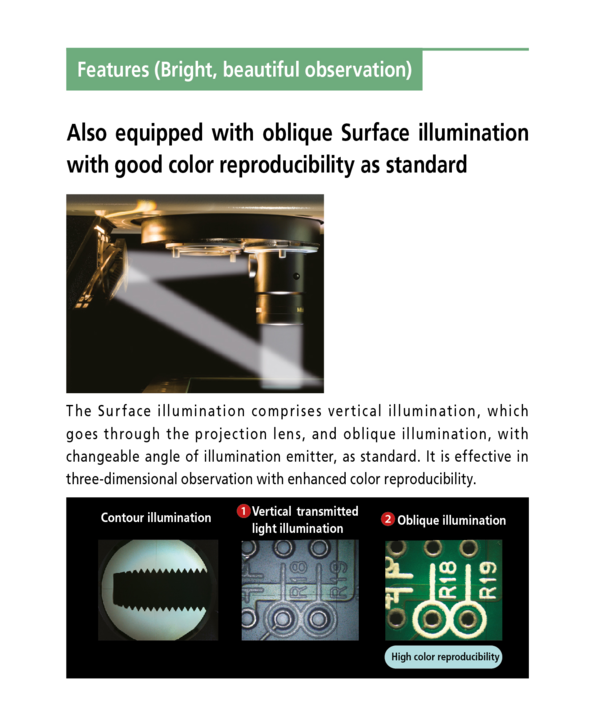

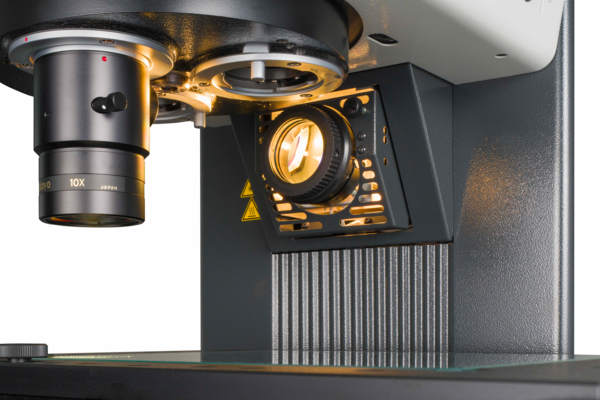

By rotating the condenser lens and changing the angle of the mirror in the objective, you can represent even poorly reflecting surfaces optimally.
Improved light intensity of a projected subject thanks to the new optical contour illumination system.
High measuring accuracy (above JIS standard).

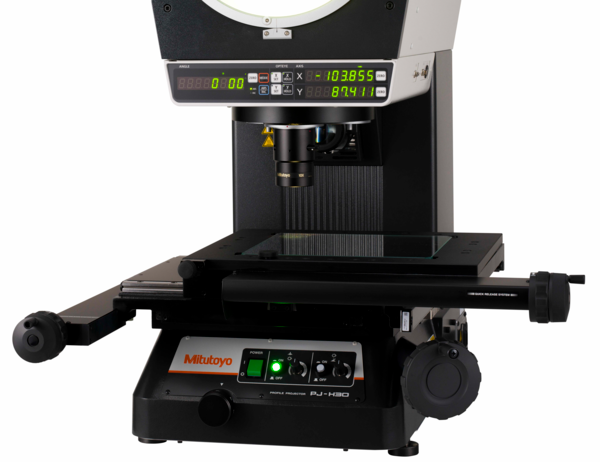

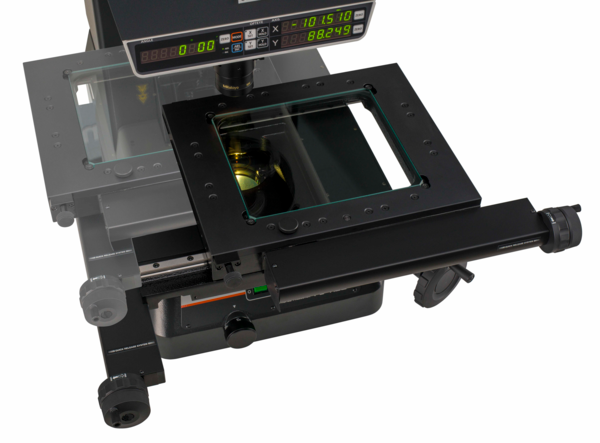

Measuring stage with rapid single-handed adjustment on both axes enabling you to switch smoothly between quick positioning and fine adjustment.

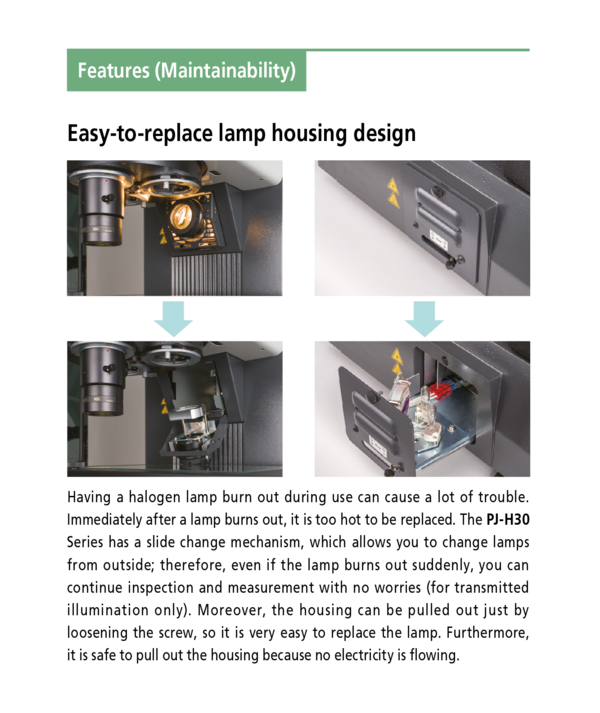

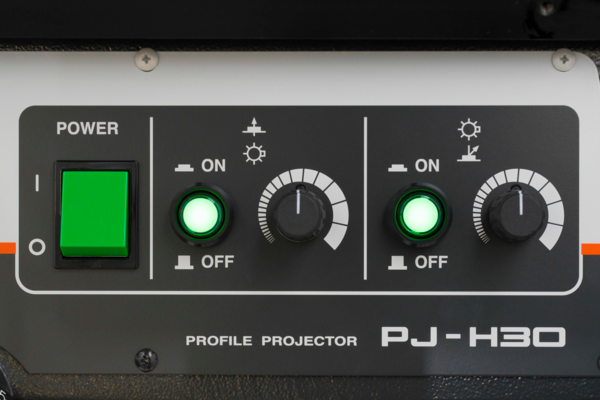

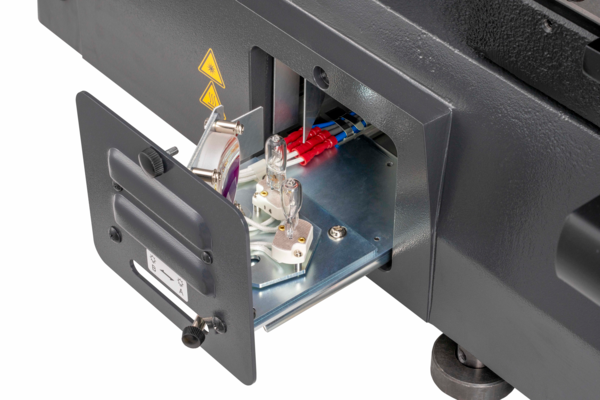

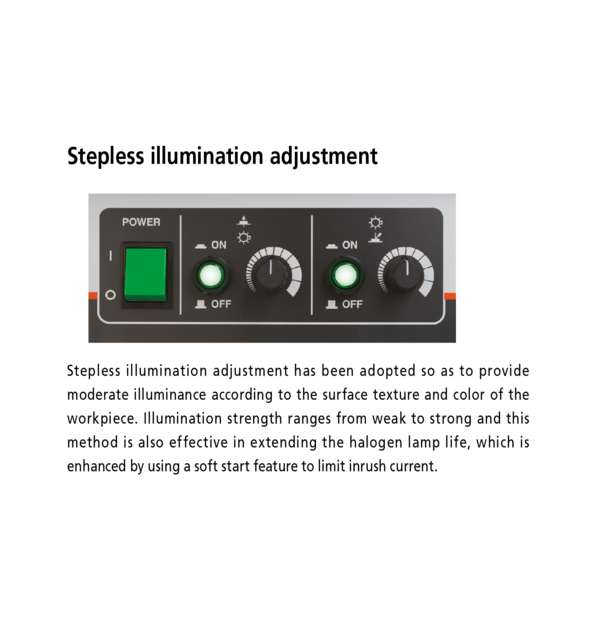

Constant current power supply unit with acceleration control to maximize the service life of the halogen lamp.

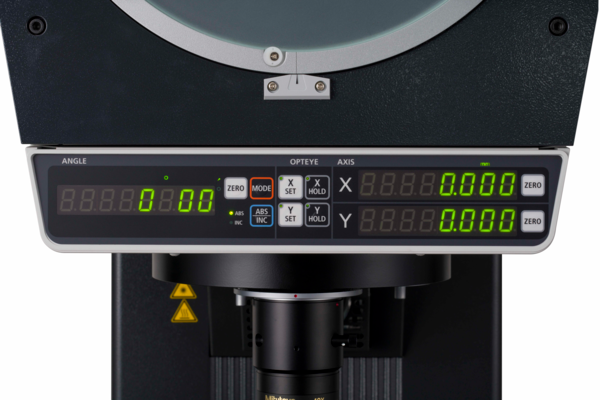

Easily read digital counter with large digit display.

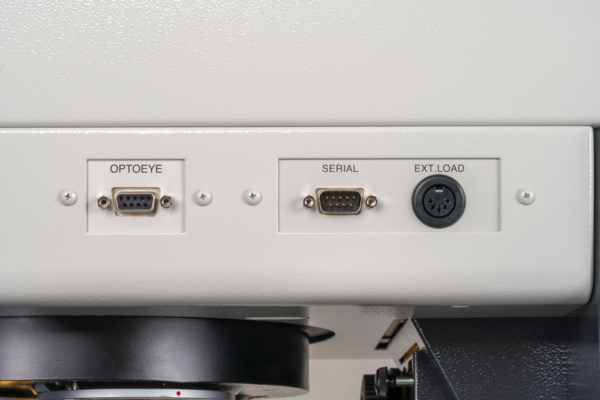

RS-232C output.

Measuring range XY:	100 x 100 mm
Functions:	Model 1010B - 100 x 100 mm XY stage table size: 300 x 240 mm XY stage effective area: 180 x 150 mm Stage glass No.: 380412 Swiveling function: ±3° Max stage loading: 10 kg Mass: 176 kg
Mass:	176 kg
