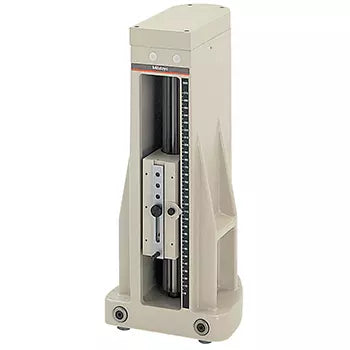

he Mitutoyo 311-215 Square Master has the following specifications:
- Vertical Travel: 150mm
- Squareness: .003mm
- Straighness: .002mm
- Mass: 13.7kg
Features:
- Squareness (perpendicularity) and straightness measurements can be performed accurately and efficiently by moving a lever.
- Check squareness and straightness
- With a dial test indicator for reading displacements.
- Its own squareness is adjustable for high accuracy measurement.
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
