318-221D VL-50-B LITEMATIC
318-221D VL-50-B LITEMATIC
318-221D VL-50-B LITEMATIC
Roll over image to zoom in Click on image to zoom
318-221D VL-50-B LITEMATIC318-221D VL-50-B LITEMATIC318-221D VL-50-B LITEMATIC

318-221D VL-50-B LITEMATIC

MitutoyoSKU: 318-221D
Price: £6,890.00 Excluding VAT

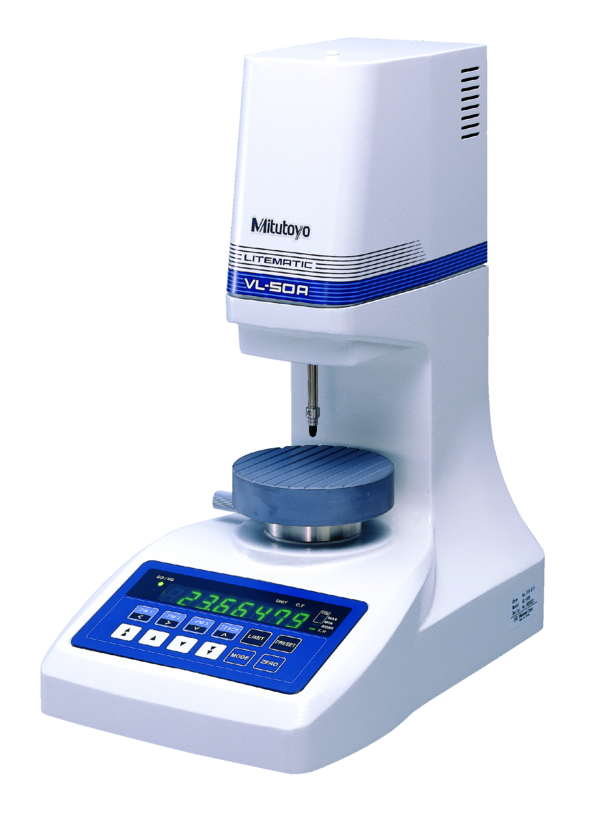

This is a high-accuracy motorised measuring machine with safe and easy operation.
The LITEMATIC VL-50 offers you the following benefits:
  • It has a measuring force of 0,01 N (1 gf) and a resolution of 0,01 ?m.
  • Its constant and low measuring force makes it especially suitable for measuring soft materials such as rubber, plastic, film thicknesses or sensitive form parts.
  • The motor driven plunger gives you a range of approach and retraction speeds for safe and easy operation.
Features
Accuracy:
(0,5 + L/1000) µm
L = Measurement height
Measuring force:
0.01 N (1 gf)
ORIGIN (ABS-Zero):
Yes
ABS / INC (INC ZERO):
Yes
Measuring range (inside):
0-50 mm

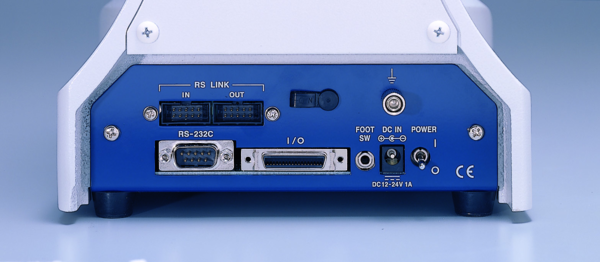

Data output:
DIGIMATIC, RS-232C, I/O interface
Data output:
Yes
Type:
VL-50 B
Reversible counting direction:
Yes
Mm?/?inch switching:
Yes
Key lock:
Yes
Tolerance input (3 or 5 levels):
Yes
Motorized plunger movement:
Yes
Mode : max-min (TIR) reading:
Yes

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
