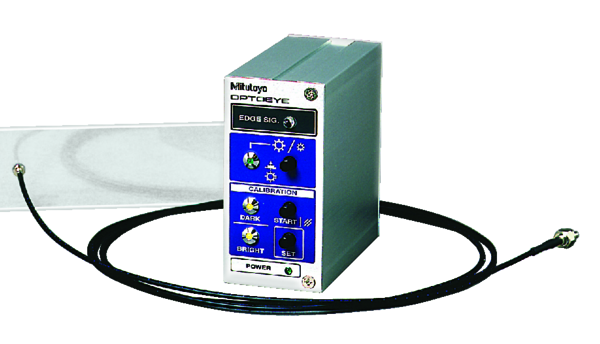

332-151 OPTOEYE200 Edge detection sensor for QMData200

Roll over image to zoom in Click on image to zoom

332-151 OPTOEYE200 Edge detection sensor for QMData200

Name: 332-151 OPTOEYE200 Edge detection sensor for QMData200
Brand: Mitutoyo
SKU: 332-161
Price: 1068.0 GBP
Availability: InStock

MitutoyoSKU: 332-161

All prices exclude VAT, which will be added at checkout.

Price:

£1,068.00 £1,200.00

Quantity:

This edge sensor allows you to make accurate measurements independant of your skill level by
automatically detecting edges used in measurements.
The Optoeye 200 offers you the following benefits:

OPTOEYE 200 reduces the effect of operator skill level on accuracy by automatically detecting edges used in measurements.
PJ-H30: You can use the OPTOEYE edge detector on models PJ-H30A (requires adapter plate 12AAG983).
PV-5110, PJ-3515F and PJ-A14: You can use the OPTOEYE edge detector in combination with the QM-Data 200.
PJ-PLUS: You can use the OPTOEYE edge detector on models 302-801-10/302-802-10 in combination with the QM-Data 200.
When you are using the OPTOEYE all projector scales must be connected to QM-Data 200 directly and built-in counters can no longer be used (except PJ-H30D type).

Product Information
Part Number	332-161
Repeatability	.001mm
Illumination	Type : Surface/Contour illumination Range : 30 to 2000 Lux on the screen Bright-Dark field difference : 20 Lux
Manufacturer	Mitutoyo

Function:	Automatic edge detection
Min. diameter:	2 mm on the screen
Min. width:	1 mm on the screen
