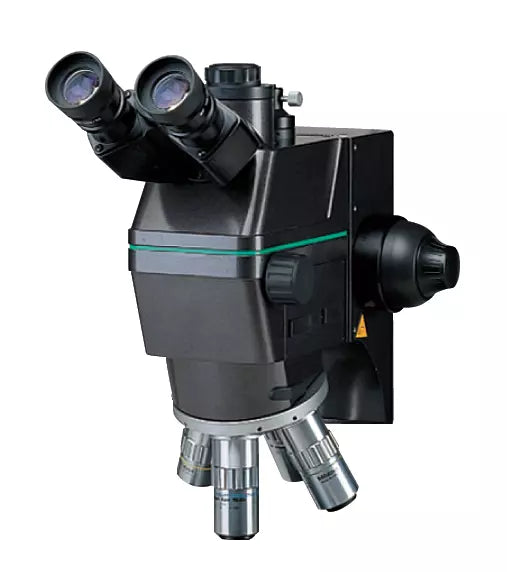

378-186-4 FS70LTHS Finescope Unit FS70 for Laser app. 1064/532/355 nm and Tilting Head/Short Base

Method: With concentric coarse and fine focusing wheels (right and left)
Range: 50mm travel range, 0.1mm/rev. for fine adjustment, 3.8mm/rev. for coarse adjustment

Siedentopf type, adjustment range: 51-76mm

0°- 20° (only - TH, - THS models)

• The FS70L supports three YAG laser wavelengths (1,064 nm, 532 nm and 355 nm), while the FS70L4 supports two wavelengths (532 nm and 266 nm), thus expanding the scope of laser applications, allowing laser-cutting of thin-films used in semiconductors and liquid crystal substrates.
However, Mitutoyo assumes no responsibility whatever for the performance and/or safety of the laser system used with Mitutoyo microscopes. A careful examination is recommended when selecting a laser-emission unit.

• Bright field, Differential Interference Contrast (DIC) and polarized observations are standard with the FS70Z. The FS70L and FS70L4 do not support the DIC method.

• By employing an inward-leaning turret, the long working distance objectives provide excellent operability.
