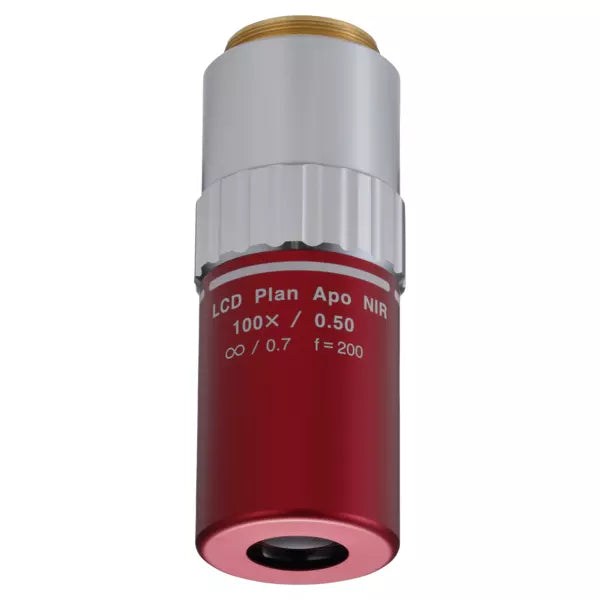

378-754-15 LCD Plan Apo NIR 100X(t0.7) Objective for bright-field observation in near-infrared range with cover glass compensation
378-754-15 LCD Plan Apo NIR 100X(t0.7) Objective for bright-field observation in near-infrared range with cover glass compensation
Roll over image to zoom in Click on image to zoom
378-754-15 LCD Plan Apo NIR 100X(t0.7) Objective for bright-field observation in near-infrared range with cover glass compensation378-754-15 LCD Plan Apo NIR 100X(t0.7) Objective for bright-field observation in near-infrared range with cover glass compensation

378-754-15 LCD Plan Apo NIR 100X(t0.7) Objective for bright-field observation in near-infrared range with cover glass compensation

MitutoyoSKU: 378-754-15
Price: £5,670.00 Excluding VAT
  • Suitabel for Bright Field Inspection and Laser-based repair Applications through 0.7 or 1.1 mm LCD cover-glass
  • Long Working Distance
  • High Quality Plan Apoochromat Design
  • Wavelength correction from Visible to Near Infrared (1800 nm)
Features
Model:
LCD Plan Apo NIR 100X (t0,7)
Magnification:
100x

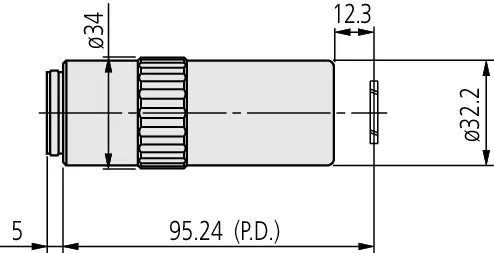

Working distance:
Through glass: 12.3 mm
In Air: 12.06 mm
Corrected Wave Length:
480-1800 nm
N.A.:
0.5
f:
2 mm
R:
0.6 µm
D.F.:
1.1 ?m
FOV 1:
ø0.24 mm
FOV 2:
0,05 x 0,06 mm
Abbreviations in product table:
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of focus
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass:
335 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 378-754-15 LCD Plan Apo NIR 100X(t0.7) Objective for bright-field observation in near-infrared range with cover glass compensation Click to open the PDF document
