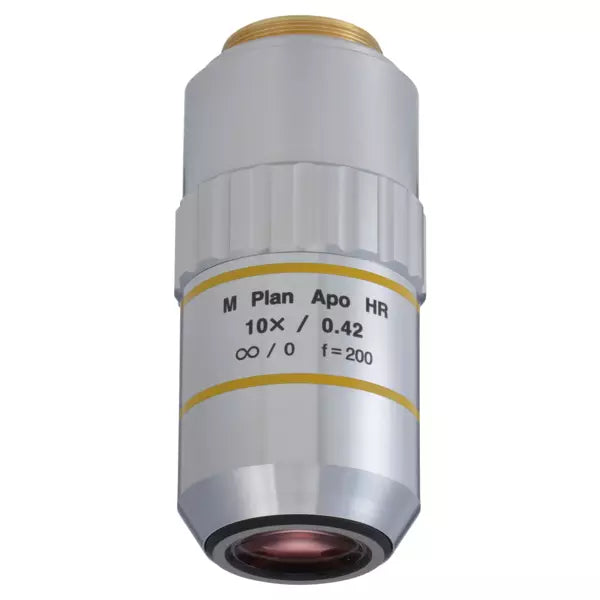

Name: 378-788-15 M Plan Apo HR 10X High resolution objective for bright-field observation in visible range
Brand: Mitutoyo
SKU: 378-788-15
Price: 3470.0 GBP
Availability: InStock

378-788-15 M Plan Apo HR 10X High resolution objective for bright-field observation in visible range

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

High Resolution
Infinity Corrected
Breight Field Inspection
High Quality Plan Apochromat
Flat Image Surface over Entire Field of View

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 378-788-15 M Plan Apo HR 10X High resolution objective for bright-field observation in visible range Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Model:	M Plan Apo HR 10X

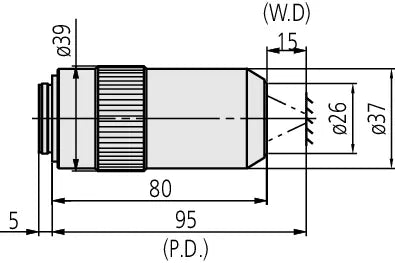

Working distance:	In Air: 15 mm
Corrected Wave Length:	436-656 nm
N.A.:	0.42
f:	20 mm
P.D.:	95 mm
R:	0.7 µm
FOV 1:	ø2.4 mm
FOV 2:	0,48 x 0,64 mm
Abbreviations in product table:	N.A.: Numerical aperture W.D.: Working distance P.D.: Parfocal distance f: Focal distance R: Resolving power D.F.: Depth of field FOV 1: Field of view when using ø24 mm eyepiece FOV 2: Field of view when using a digital camera with 1/2" chip size
Functions:	M Plan Apo HR for Bright Field Observation Compatible with microscope types VMU / FS-70 / MF-U / Hyper MF-U Note: These objectives offer extra-high resolving power.
Mass:	455 g
