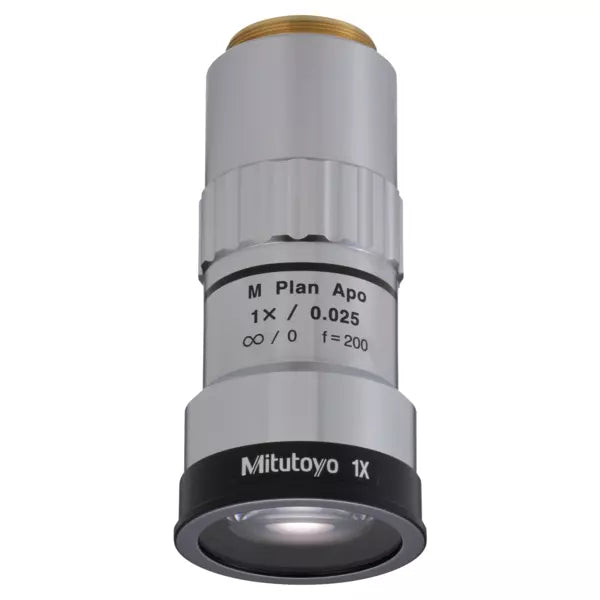

378-800-12 M Plan Apo 1X Objective for bright-field observation in visible range
378-800-12 M Plan Apo 1X Objective for bright-field observation in visible range
Roll over image to zoom in Click on image to zoom
378-800-12 M Plan Apo 1X Objective for bright-field observation in visible range378-800-12 M Plan Apo 1X Objective for bright-field observation in visible range

378-800-12 M Plan Apo 1X Objective for bright-field observation in visible range

MitutoyoSKU: 378-800-12
Price: £2,440.00 Excluding VAT
  • Long Working Distances
  • Infinity Corrected
  • Bright Field Inspection
  • High Quality Plan Apochromat Design
  • Flat Image Surface over Entire Field of View
Features
Model:
M Plan Apo 1X

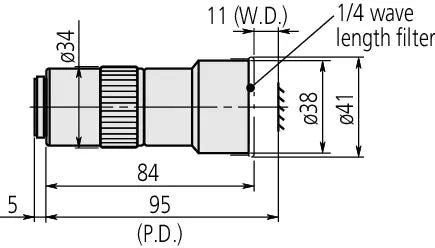

Working distance:
In Air: 13/11 mm
Corrected Wave Length:
436-656 nm
N.A.:
0.025
f:
200 mm
P.D.:
95 mm
R:
11 µm
FOV 1:
ø24 mm
FOV 2:
4,8 x 6,4 mm
Abbreviations in product table:
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of field
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
Functions:
M Plan Apo for Bright Field Observation
Compatible with microscope types VMU / FS-70 / MF-U / Hyper MF-U
Note: To avoid optical flare in use of coaxial illumination 1x objectives should be used togehter with polarisation unit on microscope and attached 1/4 wavelength plate.
Mass:
300 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 378-800-12 M Plan Apo 1X Objective for bright-field observation in visible range Click to open the PDF document
