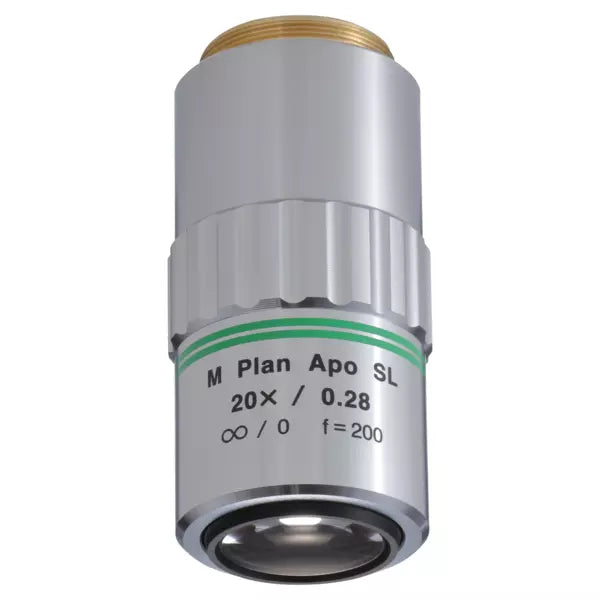

378-810-3 M Plan Apo SL20X Objective for bright-field observation in visible range, SL Super Long working distance
378-810-3 M Plan Apo SL20X Objective for bright-field observation in visible range, SL Super Long working distance
Roll over image to zoom in Click on image to zoom
378-810-3 M Plan Apo SL20X Objective for bright-field observation in visible range, SL Super Long working distance378-810-3 M Plan Apo SL20X Objective for bright-field observation in visible range, SL Super Long working distance

378-810-3 M Plan Apo SL20X Objective for bright-field observation in visible range, SL Super Long working distance

MitutoyoSKU: 378-810-3
Price: £1,920.00 Excluding VAT
Features
  • Super Long Working Distances
  • Infintiy Corrected
  • Bright Field Inspection
  • High Qualtiy Plan Apochromat Design
  • Flat Image Surface over Entire Field of View
Features
Model:
M Plan Apo SL 20X

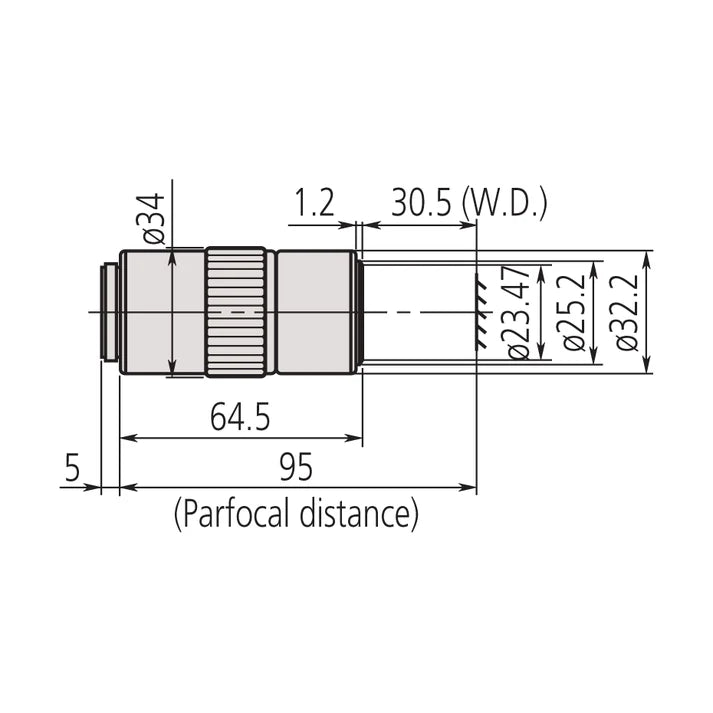

Working distance:
In Air: 30.5 mm
Corrected Wave Length:
436-656 nm
N.A.:
0.28
f:
10 mm
P.D.:
95 mm
R:
1 µm
FOV 1:
ø1.2 mm
FOV 2:
0,24 x 0,32 mm
Abbreviations in product table:
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of field
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
Functions:



M Plan Apo SL for Bright Field Observation
Compatible with microscope types VMU / FS-70 / MF-U / Hyper MF-U
Note: These objectives offer extra-long working distance.
Mass:
240 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 378-810-3 M Plan Apo SL20X Objective for bright-field observation in visible range, SL Super Long working distance Click to open the PDF document
