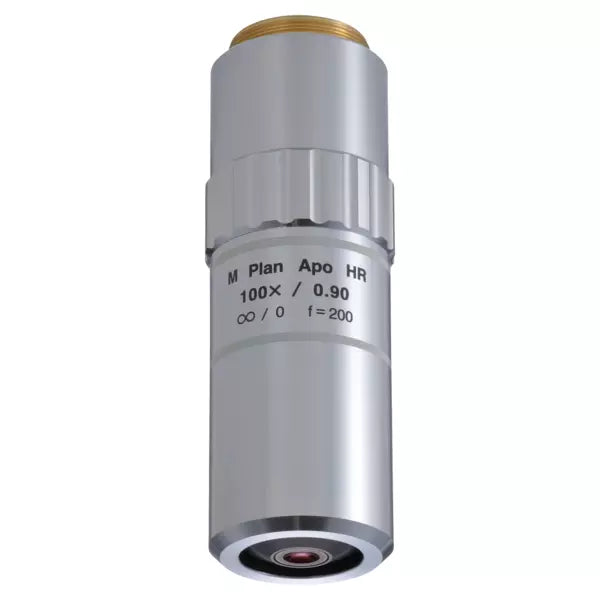

378-815-4 M Plan Apo HR 100X High resolution objective for bright-field observation in visible range
Roll over image to zoom in Click on image to zoom
378-815-4 M Plan Apo HR 100X High resolution objective for bright-field observation in visible range

378-815-4 M Plan Apo HR 100X High resolution objective for bright-field observation in visible range

MitutoyoSKU: 378-815-4
Price: £5,130.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
  • High Resolution
  • Infinity Corrected
  • Breight Field Inspection
  • High Quality Plan Apochromat
  • Flat Image Surface over Entire Field of View
Features
Model:
M Plan Apo HR 100X
Working distance:
In Air: 1.3 mm
Corrected Wave Length:
436-656 nm
N.A.:
0.9
f:
2 mm
P.D.:
95 mm
R:
0.3 µm
FOV 1:
ø0.24 mm
FOV 2:
0,05 x 0,06 mm
Abbreviations in product table:
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of field
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
Functions:
M Plan Apo HR for Bright Field Observation
Compatible with microscope types VMU / FS-70 / MF-U / Hyper MF-U
Note: These objectives offer extra-high resolving power.
Mass:
410 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 378-815-4 M Plan Apo HR 100X High resolution objective for bright-field observation in visible range Click to open the PDF document
