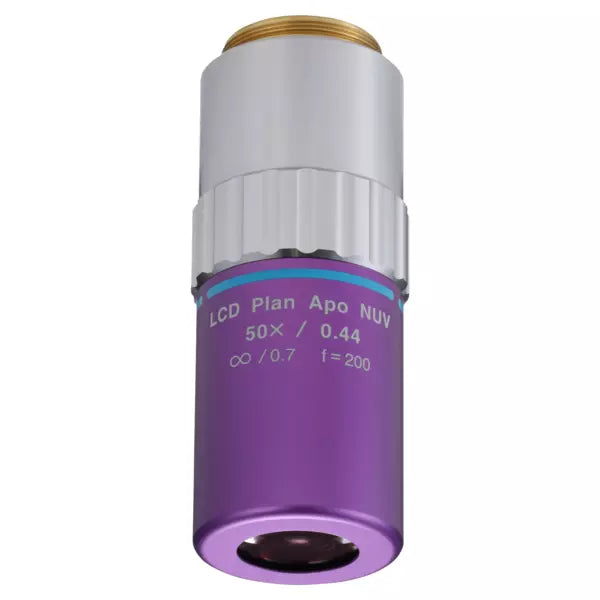

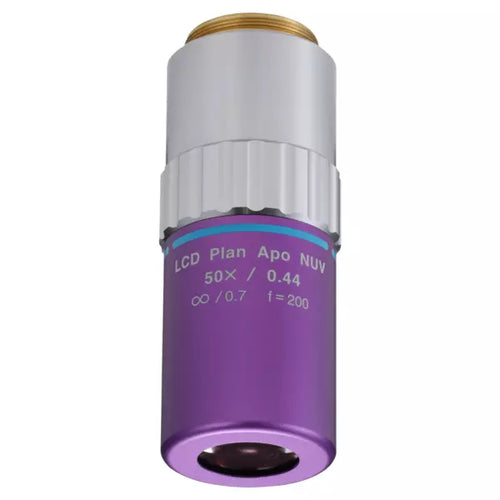

378-820-8 LCD Plan Apo NUV 50X(t0.7) Objective for bright-field observation in near ultraviolett range with cover glass compensation
378-820-8 LCD Plan Apo NUV 50X(t0.7) Objective for bright-field observation in near ultraviolett range with cover glass compensation
Roll over image to zoom in Click on image to zoom
378-820-8 LCD Plan Apo NUV 50X(t0.7) Objective for bright-field observation in near ultraviolett range with cover glass compensation378-820-8 LCD Plan Apo NUV 50X(t0.7) Objective for bright-field observation in near ultraviolett range with cover glass compensation

378-820-8 LCD Plan Apo NUV 50X(t0.7) Objective for bright-field observation in near ultraviolett range with cover glass compensation

MitutoyoSKU: 378-820-8
Price: £5,730.00 Excluding VAT
  • Suitable for Bright Field Inspection and Laser Applications through 0,7 or 1,1 mm LCD conver-glass
  • Long Working Distance
  • High Quality Plan Apochromat Design
  • Wavelength correction from Visible to Near Ultraviolett (355 nm)
  • High Resolution Type available (LCD Plan Apo NUV HR)
Features
Model:
LCD Plan Apo
NUV 50X (t0,7)
Magnification:
50x
Working distance:
Through glass: 15 mm
In Air: 14.76 mm
Corrected Wave Length:
355-656.3 nm
N.A.:
0.44
f:
4 mm
P.D.:
95 mm
R:
0.6 µm
D.F.:
1.4 ?m
FOV 1:
ø0.48 mm
FOV 2:
0,1 x 0,13 mm
Abbreviations in product table:
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of focus
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass:
350 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 378-820-8 LCD Plan Apo NUV 50X(t0.7) Objective for bright-field observation in near ultraviolett range with cover glass compensation Click to open the PDF document
