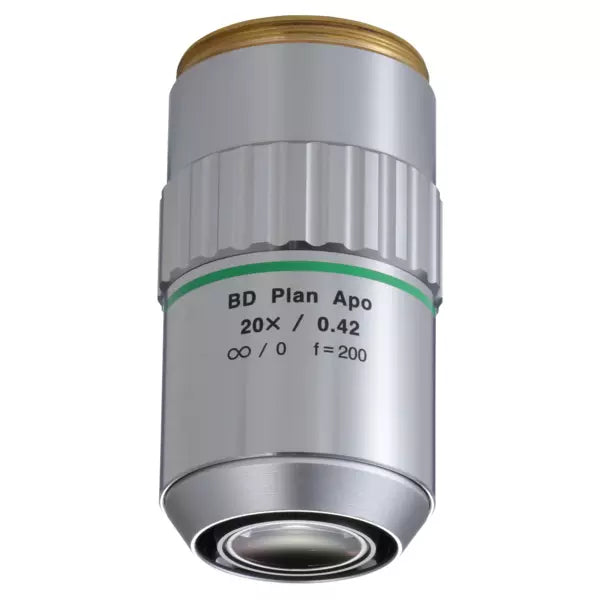

378-834-7 BD Plan Apo 20X Objective for bright/dark-field observation in visible range
Roll over image to zoom in Click on image to zoom
378-834-7 BD Plan Apo 20X Objective for bright/dark-field observation in visible range

378-834-7 BD Plan Apo 20X Objective for bright/dark-field observation in visible range

MitutoyoSKU: 378-834-7
Price: £2,210.00 Excluding VAT
Features
  • Bright/Dark Field Inspection
  • Infinity corrected
  • Long Working Distance
  • High Qualtiy Plan Apochromat Design
  • Suited for inspection of scratches, concavity and convexity on surfaces
Features
Model:
BD Plan Apo 20X
Magnification:
20x
Working distance:
In Air: 20 mm
Corrected Wave Length:
436-656 nm
N.A.:
0.42
f:
10 mm
R:
0.7 µm
D.F.:
1.6 ?m
FOV 1:
ø1.2 mm
FOV 2:
0,24 x 0,32 mm
Abbreviations in product table:
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of field
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
Functions:
BD Plan Apo for Bright/Dark Field Observation
Compatible with microscope types MF-U / Hyper MF-U
Mass:
400 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 378-834-7 BD Plan Apo 20X Objective for bright/dark-field observation in visible range Click to open the PDF document
