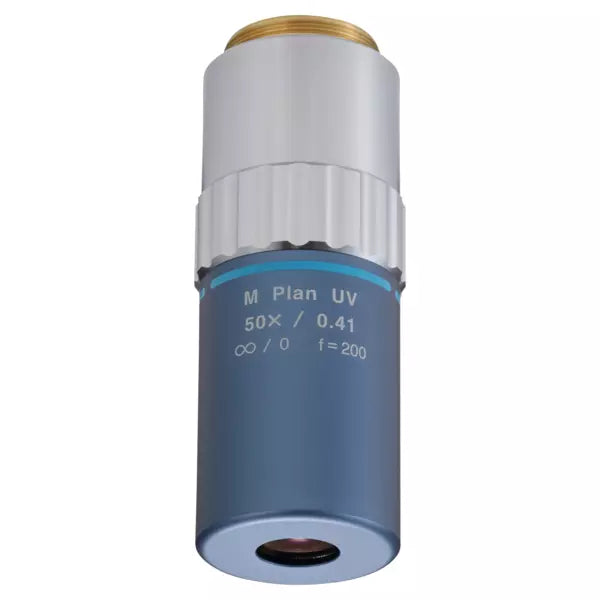

Name: 378-838-8 M Plan UV 50X Objective for bright-field observation in ultraviolet range
Brand: Mitutoyo
SKU: 378-838-8
Price: 11790.0 GBP
Availability: InStock

378-838-8 M Plan UV 50X Objective for bright-field observation in ultraviolet range

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

Suitable for Bright Field Inspection and Laser Applications
Long Working Distance
High Quality Plan Design
Wavelength optimized for Visible and Ultraviolett (266 nm) Wavelength
High Transmission in Ultraviolett Range

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 378-838-8 M Plan UV 50X Objective for bright-field observation in ultraviolet range Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Model:	M Plan UV 50X
Functions:	Ultraviolet wavelenght Corrected M Plan UV for Bright Field Observation Compatible with microscope types VMU / FS-70
Magnification:	50x
Working distance:	In Air: 12 mm
Corrected Wave Length:	266 and 550 nm
N.A.:	0.41
f:	4 mm

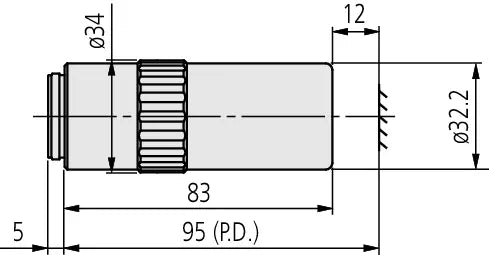

P.D.:	95 mm
R:	0.7 µm
D.F.:	1.6 ?m
FOV 1:	ø0.48 mm
FOV 2:	0,1 x 0,13 mm
Abbreviations in product table:	N.A.: Numerical aperture W.D.: Working distance P.D.: Parfocal distance f: Focal distance R: Resolving power D.F.: Depth of focus FOV 1: Field of view when using ø24 mm eyepiece FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass:	400 g
