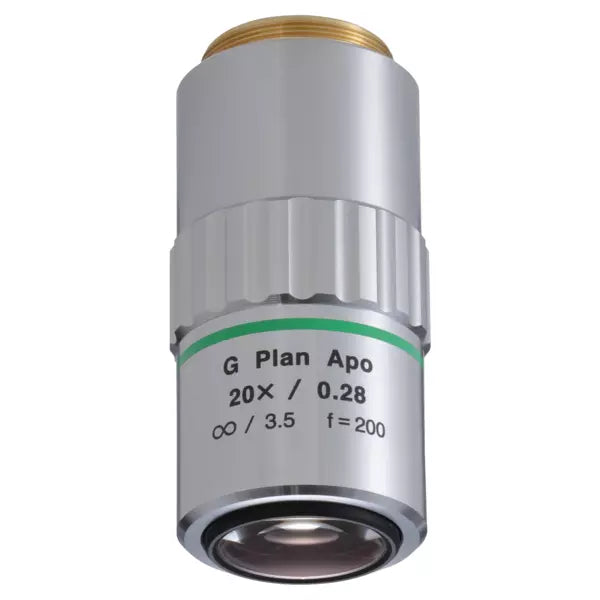

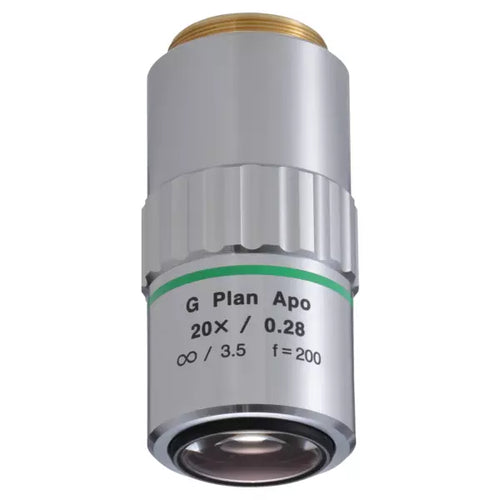

378-847 G Plan Apo 20X(t3.5) Objective for bright-field observation in visible range with cover glass compensation
378-847 G Plan Apo 20X(t3.5) Objective for bright-field observation in visible range with cover glass compensation
Roll over image to zoom in Click on image to zoom
378-847 G Plan Apo 20X(t3.5) Objective for bright-field observation in visible range with cover glass compensation378-847 G Plan Apo 20X(t3.5) Objective for bright-field observation in visible range with cover glass compensation

378-847 G Plan Apo 20X(t3.5) Objective for bright-field observation in visible range with cover glass compensation

MitutoyoSKU: 378-847
Price: £3,250.00 Excluding VAT
  • Infinity Corrected
  • Bright Field Inspection
  • High Qualtiy Plan Apochromat Design
  • Designed to observe Objects through 3.5 mm thick Cover Glass

Note: Contact Mitutoyo to custom order a specific cover glass correction to suit your application if required. Thickness, material and refractive index are all specifiable within usual limits.
Features
Model:
G Plan Apo 20X

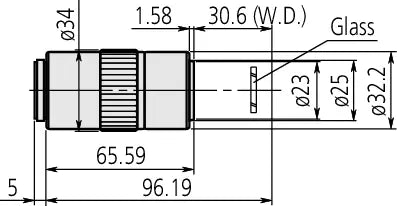

Working distance:
Through glass: 30.6 mm
In Air: 29.42 mm
Corrected Wave Length:
436-656 nm
N.A.:
0.28
f:
10 mm
P.D.:
96.19 mm
R:
1 µm
FOV 1:
ø1.2 mm
FOV 2:
0,24 x 0,32 mm
Abbreviations in product table:
Mag.: Magnification
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of field
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
Functions:



Glass Thickness Corrected
G Plan Apo for Bright Field Observation
Compatible with microscope types VMU / FS-70 / MF-U / Hyper MF-U
Note: The G Plan Apo Series are designed for observing a workpiece through glass (thickness: 3,5 mm).
Mass:
270 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 378-847 G Plan Apo 20X(t3.5) Objective for bright-field observation in visible range with cover glass compensation Click to open the PDF document
