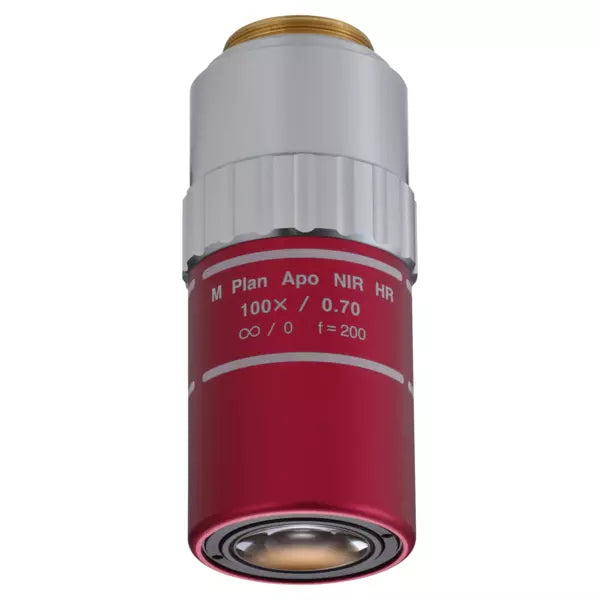

378-864-15 M Plan Apo NIR HR 100X High resolution objective for bright-field observation in near-infrared range
Roll over image to zoom in Click on image to zoom
378-864-15 M Plan Apo NIR HR 100X High resolution objective for bright-field observation in near-infrared range

378-864-15 M Plan Apo NIR HR 100X High resolution objective for bright-field observation in near-infrared range

MitutoyoSKU: 378-864-15
Price: £8,640.00 Excluding VAT
  • Infinity Corrected
  • Suitable for Bright Field Inspection and Laser Applications
  • Long Working Distance
  • High Quality Plan Apochromat Design
  • Wavelength Correction from Visible to Near Infrared (1800 nm)
High-Power Type availabel (M Plan Apo NIR HR)
Features
Model:
M Plan Apo NIR HR 100X
Magnification:
100x
N.A.:
0.70
P.D.:
95 mm
f:
2 mm
R:
0.4 µm
D.F.:
0.6 ?m
FOV 1:
ø0.24 mm
FOV 2:
0.05 x 0.06 mm
Abbreviations in product table:
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of field
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
M Plan Apo NIR:
Note:
These objective lenses are designed so that the image of a workpiece remains focused within the focal depth even when the wavelength used is changed from within the visible range up to the near-infrared (480 to 1,800 nm).
Therefore the M Plan NIR Series are suitable for laser repair. However, when the wavelength used exceeds 1,100 nm, the focussing position may deviate slightly from that in the visible range due to changes in glass dispersion and refractive index.
Mass:
490 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 378-864-15 M Plan Apo NIR HR 100X High resolution objective for bright-field observation in near-infrared range Click to open the PDF document
