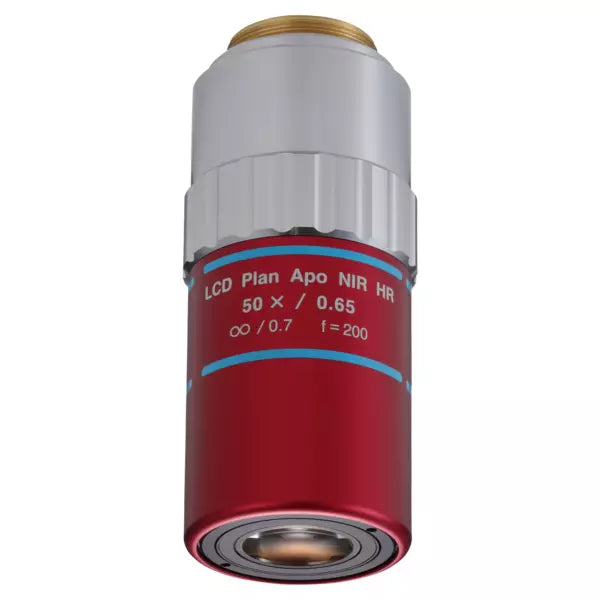

378-869-5 LCD Plan Apo NIR HR 50X(t0.7) High resolution objective for bright-field observation in near-infrared range with cover glass compensation

Roll over image to zoom in Click on image to zoom

378-869-5 LCD Plan Apo NIR HR 50X(t0.7) High resolution objective for bright-field observation in near-infrared range with cover glass compensation

Name: 378-869-5 LCD Plan Apo NIR HR 50X(t0.7) High resolution objective for bright-field observation in near-infrared range with cover glass compensation
Brand: Mitutoyo
SKU: 378-869-5
Price: 9920.0 GBP
Availability: InStock

MitutoyoSKU: 378-869-5

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£9,920.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Suitabel for Bright Field Inspection and Laser-based repair Applications through 0.7 or 1.1 mm LCD cover-glass
Long Working Distance
High Quality Plan Apoochromat Design
Wavelength correction from Visible to Near Infrared (1800 nm)

Model:	LCD Plan Apo NIR HR 50X (t 0,7)
Magnification:	50x

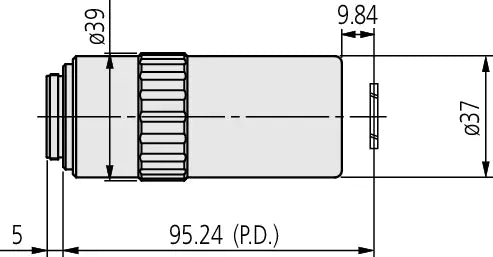

Working distance:	Through glass: 9.84 mm In Air: 9.6 mm
Corrected Wave Length:	480-1800 nm
N.A.:	0.65
f:	4 mm
R:	0.4 µm
D.F.:	0.7 μm
FOV 1:	ø0.48 mm
FOV 2:	0,1 x 0,13 mm
Abbreviations in product table:	N.A.: Numerical aperture W.D.: Working distance P.D.: Parfocal distance f: Focal distance R: Resolving power D.F.: Depth of focus FOV 1: Field of view when using ø24 mm eyepiece FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass:	450 g
