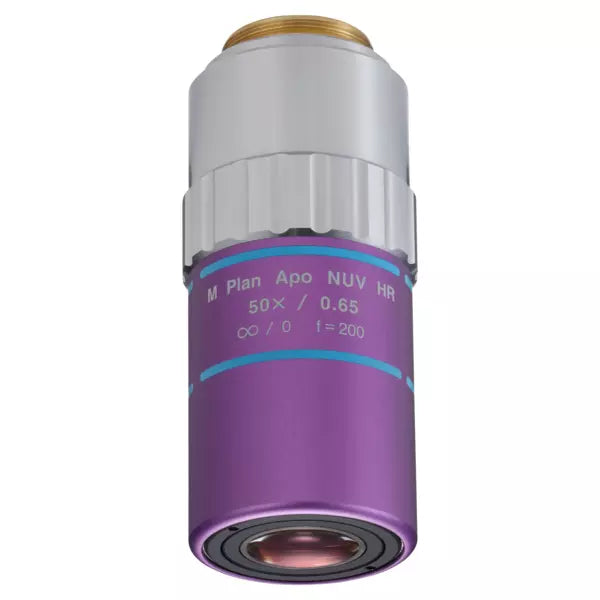

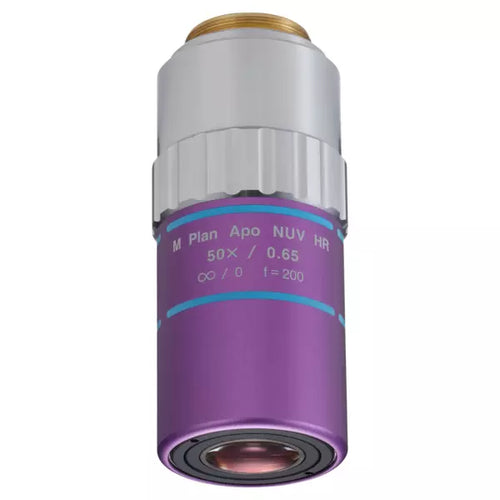

378-888-6 M Plan Apo NUV HR 50X High resolution objective for bright-field observation in near ultraviolett range
378-888-6 M Plan Apo NUV HR 50X High resolution objective for bright-field observation in near ultraviolett range
Roll over image to zoom in Click on image to zoom
378-888-6 M Plan Apo NUV HR 50X High resolution objective for bright-field observation in near ultraviolett range378-888-6 M Plan Apo NUV HR 50X High resolution objective for bright-field observation in near ultraviolett range

378-888-6 M Plan Apo NUV HR 50X High resolution objective for bright-field observation in near ultraviolett range

MitutoyoSKU: 378-888-6
Price: £13,900.00 Excluding VAT
  • Suitable for Bright Field Inspection and Laser Applications
  • Long Working Distance
  • High Quality Plan Apochromat Design
  • Wavelength correction from Visible to Near Ultraviolett (355 nm)
  • High Power Type available (M Plan Apo NUV HR)
Features
Model:
M Plan Apo
NUV HR 50X
Functions:



Near-ultraviolet wavelength Corrected
M Plan Apo NUV for Bright Field Observation
Compatible with microscope types VMU / FS-70
Magnification:
50x
Working distance:
In Air: 10 mm
Corrected Wave Length:
355-620 nm
N.A.:
0.65
f:
4 mm

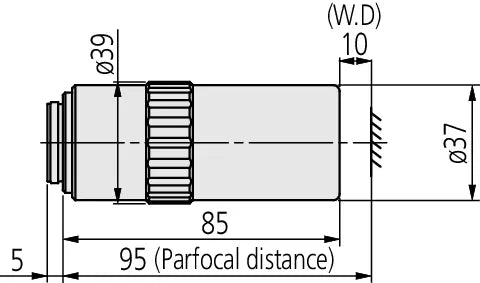

P.D.:
95 mm
R:
0.42 µm
D.F.:
0.65 ?m
FOV 1:
ø0.48 mm
FOV 2:
0,1 x 0,13 mm
Abbreviations in product table:
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of focus
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass:
550 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 378-888-6 M Plan Apo NUV HR 50X High resolution objective for bright-field observation in near ultraviolett range Click to open the PDF document
