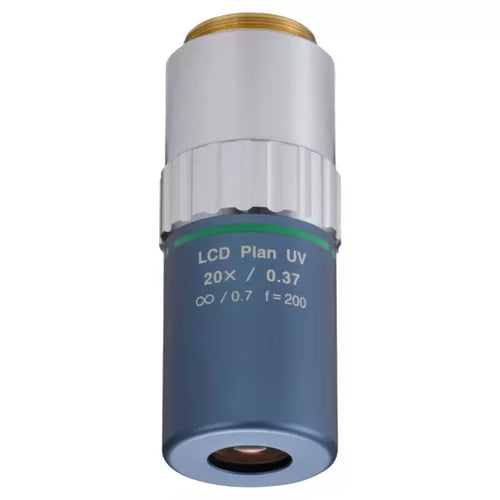

378-892-8 LCD Plan UV 20X(t0.7) Objective for bright-field observation in ultraviolet range with cover glass compensation
378-892-8 LCD Plan UV 20X(t0.7) Objective for bright-field observation in ultraviolet range with cover glass compensation
Roll over image to zoom in Click on image to zoom
378-892-8 LCD Plan UV 20X(t0.7) Objective for bright-field observation in ultraviolet range with cover glass compensation378-892-8 LCD Plan UV 20X(t0.7) Objective for bright-field observation in ultraviolet range with cover glass compensation

378-892-8 LCD Plan UV 20X(t0.7) Objective for bright-field observation in ultraviolet range with cover glass compensation

MitutoyoSKU: 378-892-8
Price: £14,330.00 Excluding VAT
  • Suitable for Bright Field Inspection and Laser Applications through 0,7 mm LCD cover-glass
  • Long Working Distance
  • High Quality Plan Design
  • Wavelength optimized for Visible and Ultraviolett (266 nm)
Features
Model:
LCD Plan UV
20X (t0,7)
Magnification:
20x
Working distance:
Through glass: 15.2 mm
In Air: 14.98 mm
Corrected Wave Length:
266 and 550 nm
N.A.:
0.37
f:
10 mm
P.D.:
95 mm
R:
0.8 µm
D.F.:
2.1 ?m
FOV 1:
ø1.2 mm
FOV 2:
0,24 x 0,32 mm
Abbreviations in product table:
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of focus
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass:
370 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 378-892-8 LCD Plan UV 20X(t0.7) Objective for bright-field observation in ultraviolet range with cover glass compensation Click to open the PDF document
