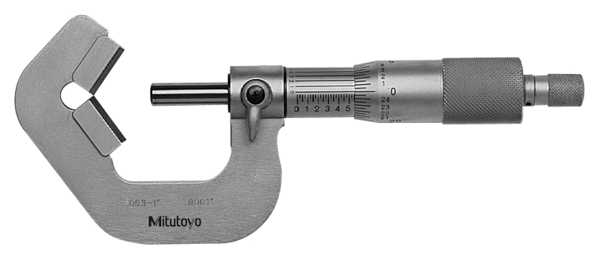

Mitutoyo 5 Flute V-Anvil Micrometer 0,09-1" 114-135

Roll over image to zoom in Click on image to zoom

Mitutoyo 5 Flute V-Anvil Micrometer 0,09-1" 114-135

Name: Mitutoyo 5 Flute V-Anvil Micrometer 0,09-1" 114-135
Brand: Mitutoyo
SKU: 114-135
Price: 287.7 GBP
Availability: InStock

MitutoyoSKU: 114-135

All prices exclude VAT, which will be added at checkout.

Price:

£287.70 £411.00

Quantity:

A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 5-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement. High resolution provided by a vernier scale on sleeve.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	114-135
Measuring Ranges	0.090-1.000"
Accuracy	+/-.0002"
Unit of Measurement	Inch
Measuring Force	5-10N
Type	V-Anvil
Constant Force Device	Ratchet Stop
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Inch
Range:	0,9 - 1 "
Graduation:	0,0001"
Max. Permissible Error J MPE:	±0,0002"
Anvil:	Without groove

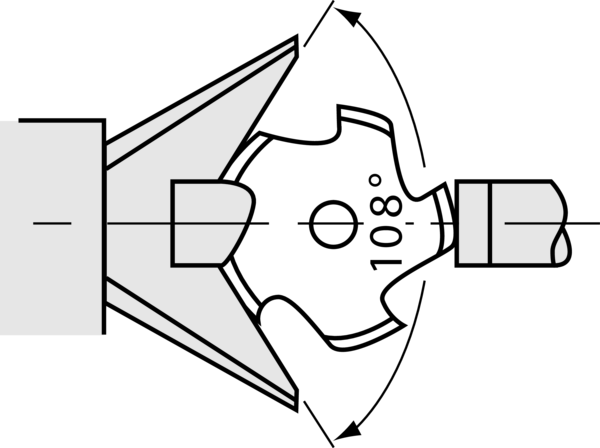

Measuring face:	Prism angle 60°/108°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Setting standard:	167-337 ø 0.2"
Delivered:	Including box, setting standard, key
Mass:	220 g
