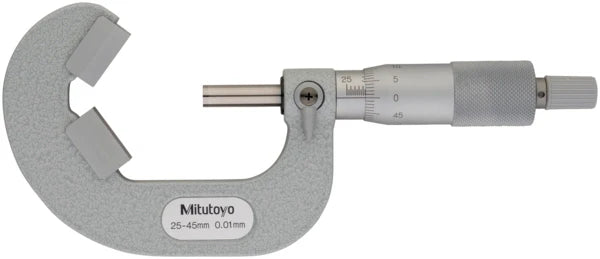

Mitutoyo 5 Flute V-Anvil Micrometer 25-45mm 114-122
Mitutoyo 5 Flute V-Anvil Micrometer 25-45mm 114-122
Mitutoyo 5 Flute V-Anvil Micrometer 25-45mm 114-122
Roll over image to zoom in Click on image to zoom
Mitutoyo 5 Flute V-Anvil Micrometer 25-45mm 114-122Mitutoyo 5 Flute V-Anvil Micrometer 25-45mm 114-122Mitutoyo 5 Flute V-Anvil Micrometer 25-45mm 114-122

Mitutoyo 5 Flute V-Anvil Micrometer 25-45mm 114-122

MitutoyoSKU: 114-122
List price: £551.00 Offer price: £402.00 Excluding VAT

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Setting Standard V-Anvil Micrometer 5mm 167-327
Part number: 167-327  → View product
Setting Standard V-Anvil Micrometer 10mm 167-328
Part number: 167-328  → View product
Setting Standard V-Anvil Micrometer 25mm 167-329
Part number: 167-329  → View product
Setting Standard V-Anvil Micrometer 40mm 167-330
Part number: 167-330  → View product
Setting Standard V-Anvil Micrometer 55mm 167-331
Part number: 167-331  → View product
Setting Standard V-Anvil Micrometer 70mm 167-332
Part number: 167-332  → View product

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 5-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
25 - 45 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±5 µm
Anvil:
Without groove
Measuring face:
Prism angle 60°/108°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Setting standard:
167-329 ø 25 mm
Delivered:
Including box, setting standard, key
Mass:
400 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo 5 Flute V-Anvil Micrometer 25-45mm 114-122 Click to open the PDF document
