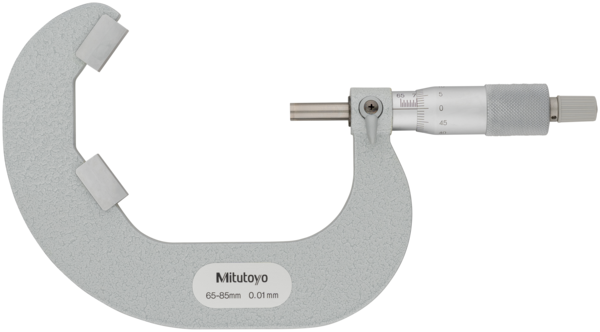

Mitutoyo 5 Flute V-Anvil Micrometer 65-85mm 114-124
Mitutoyo 5 Flute V-Anvil Micrometer 65-85mm 114-124
Mitutoyo 5 Flute V-Anvil Micrometer 65-85mm 114-124
Roll over image to zoom in Click on image to zoom
Photo 1 of 3 More photos — use the arrows
Mitutoyo 5 Flute V-Anvil Micrometer 65-85mm 114-124Mitutoyo 5 Flute V-Anvil Micrometer 65-85mm 114-124Mitutoyo 5 Flute V-Anvil Micrometer 65-85mm 114-124

Mitutoyo 5 Flute V-Anvil Micrometer 65-85mm 114-124

MitutoyoSKU: 114-124
List price: £761.00 Offer price: £556.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
UKAS Calibration of Setting Disc
£25.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Setting Standard V-Anvil Micrometer 5mm 167-327
Part number: 167-327  → View product
Setting Standard V-Anvil Micrometer 10mm 167-328
Part number: 167-328  → View product
Setting Standard V-Anvil Micrometer 25mm 167-329
Part number: 167-329  → View product
Setting Standard V-Anvil Micrometer 40mm 167-330
Part number: 167-330  → View product
Setting Standard V-Anvil Micrometer 55mm 167-331
Part number: 167-331  → View product
Setting Standard V-Anvil Micrometer 70mm 167-332
Part number: 167-332  → View product
This V-Anvil Micrometer helps you measure cutting tools and taps.
It offers the following benefits:
  • It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.
  • V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.
Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
65 - 85 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±7 µm
Anvil:
Without groove
Measuring face:
Prism angle 60°/108°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Setting standard:
167-332 ø 70 mm
Delivered:
Including box, setting standard, key
Mass:
760 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo 5 Flute V-Anvil Micrometer 65-85mm 114-124 Click to open the PDF document
