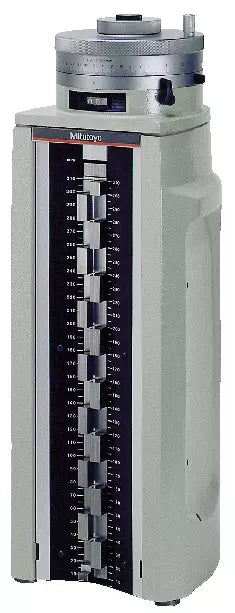

Universal Height Master 0,2-12,2", Block Step 0,5" straight 515-310

MitutoyoSKU: 515-310
Price: £3,140.00 Excluding VAT
This Universal Height Master offers you the following benefits:
  • It is designed for both vertical and horizontal orientations, enabling you to carry out a wide range of applications such as accuracy checking of machine tool table movements.
  • It is supplied in a fitted wooden case.
Features
Graduation:
0.001 mm
Inch-Metric:
Inch
Block step:
0.5" straight
Feed error:
±40 µin
Range:
0.2 - 12.2 "
Retrace error:
40 µin
Micrometer adjustment:
20 mm
Micrometer feed:
0.5 mm
Block pitch accuracy:
±50 µin
Parallelism of blocks:
1 µm
Delivered:
In a wooden case with certificate of inspection
Delivered:
In a wooden case with certificate of inspection
Mass:
21.4 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Universal Height Master 0,2-12,2", Block Step 0,5" straight 515-310 Click to open the PDF document
