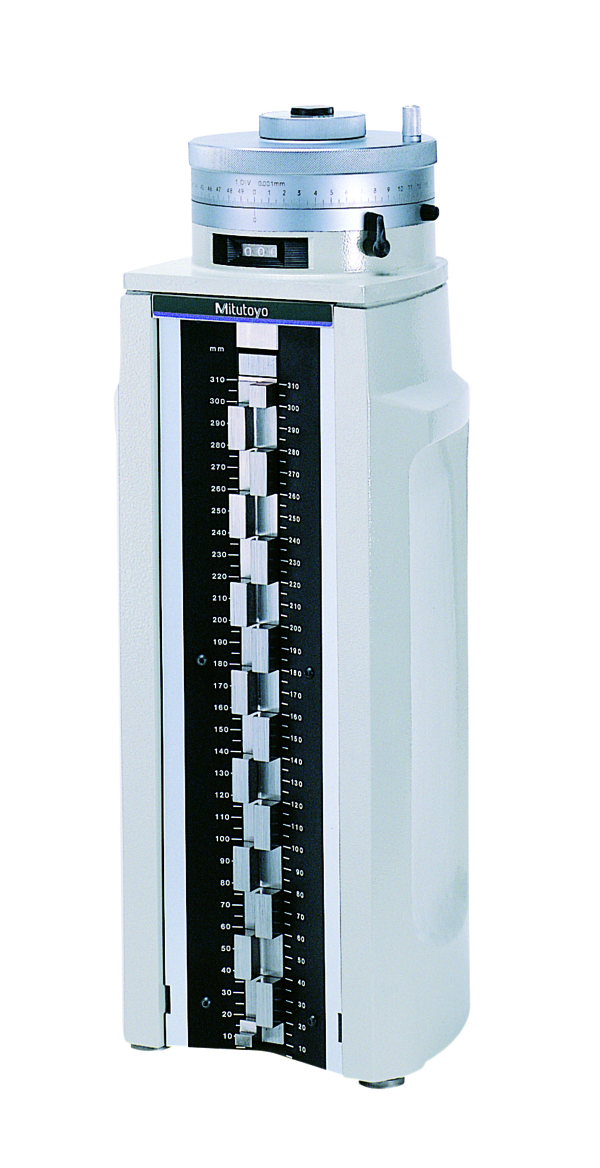

Universal Height Master 5-310mm, Block Step 20mm staggered 515-322

MitutoyoSKU: 515-322
Price: £3,380.00 Excluding VAT

Optional Services

Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

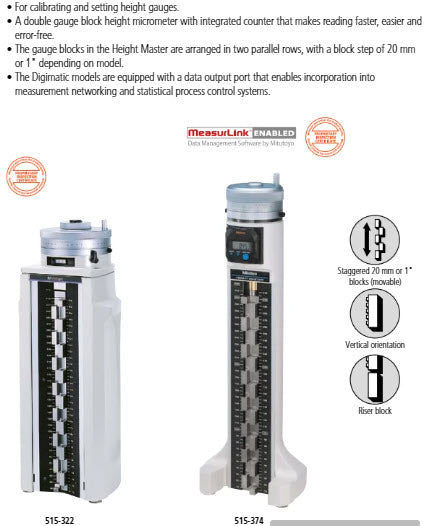

This Universal Height Master offers you the following benefits:
  • It is designed for both vertical and horizontal orientations, enabling you to carry out a wide range of applications such as accuracy checking of machine tool table movements.
  • It is supplied in a fitted wooden case.

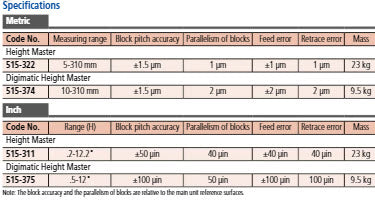

Features

Range:
5 - 310 mm
Graduation:
0.001 mm
Inch-Metric:
Metric
Block step:
20 mm staggered
Feed error:
±1 µm
Retrace error:
1 µm
Micrometer adjustment:
20 mm
Micrometer feed:
0.5 mm
Block pitch accuracy:
±1.5 µm
Parallelism of blocks:
1 µm
Delivered:
In a wooden case with certificate of inspection
Mass:
23 kg

No technical information is currently available.

No application information is currently available.
