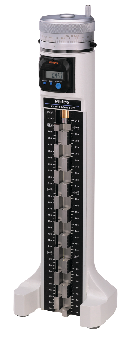

Mitutoyo Digital Height Master 10-310mm 515-374

MitutoyoSKU: 515-374

Price: Sale price £2,820.00 Excluding VAT

Optional Services

Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
DescriptionThis is a standard model with a digital display, that offers you the following benefits:
  • It gives you all the essential specifications required for a versatile height standard.
  • You can use it to calibrate and set height gauges and other measuring instruments.
  • Models have two measuring faces on the same level, one facing up and the other down.
Range:
10 - 310 mm
Graduation:
0.002 mm
Inch-Metric:
Metric
Digital step:
0,001 mm
Block step:
20 mm staggered
Feed error:
±2 µm
Retrace error:
2 µm
Micrometer adjustment:
20 mm
Micrometer feed:
0.5 mm
Block pitch accuracy:
Range ? 310 mm : ±1.5 µm
310 < range ? 450 mm:
±2.5 µm
450 < range ? 610 mm:
±3.5 µm

Parallelism of blocks:
Range ? 310mm:
2µm
310 < range ? 610mm:
2.5 µm
Battery life:
Approx. 1,8 years
DATA (output with cable) / HOLD (display value):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Data output:
Yes
PRESET:
Yes
ABS / INC (INC ZERO):
Yes
Delivered:
In a wooden case with certificate of inspection, 11 mm gauge block, SR-44 battery
Mass:
9.5 kg
